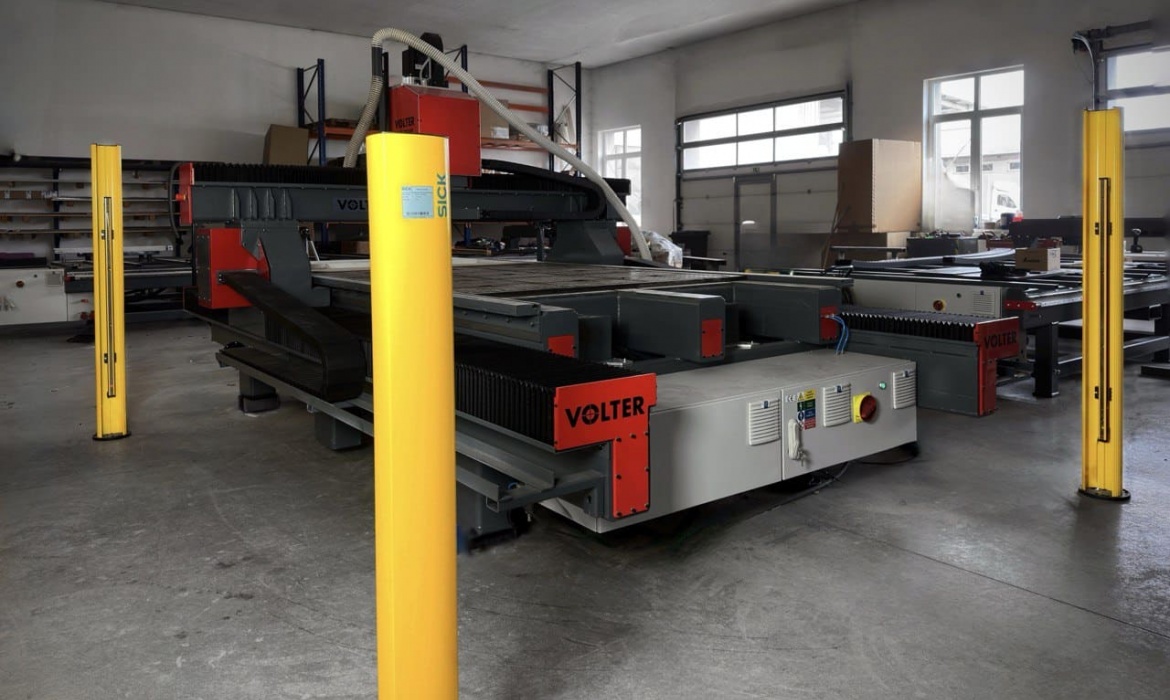

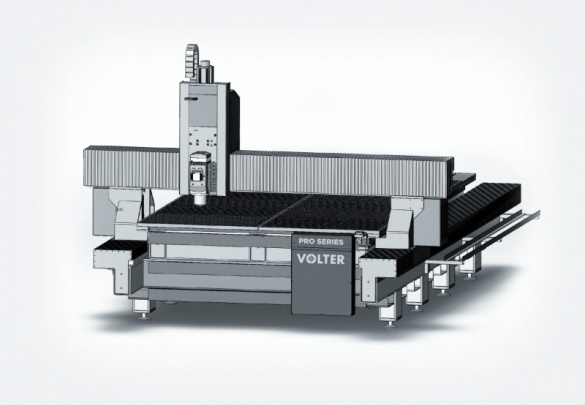

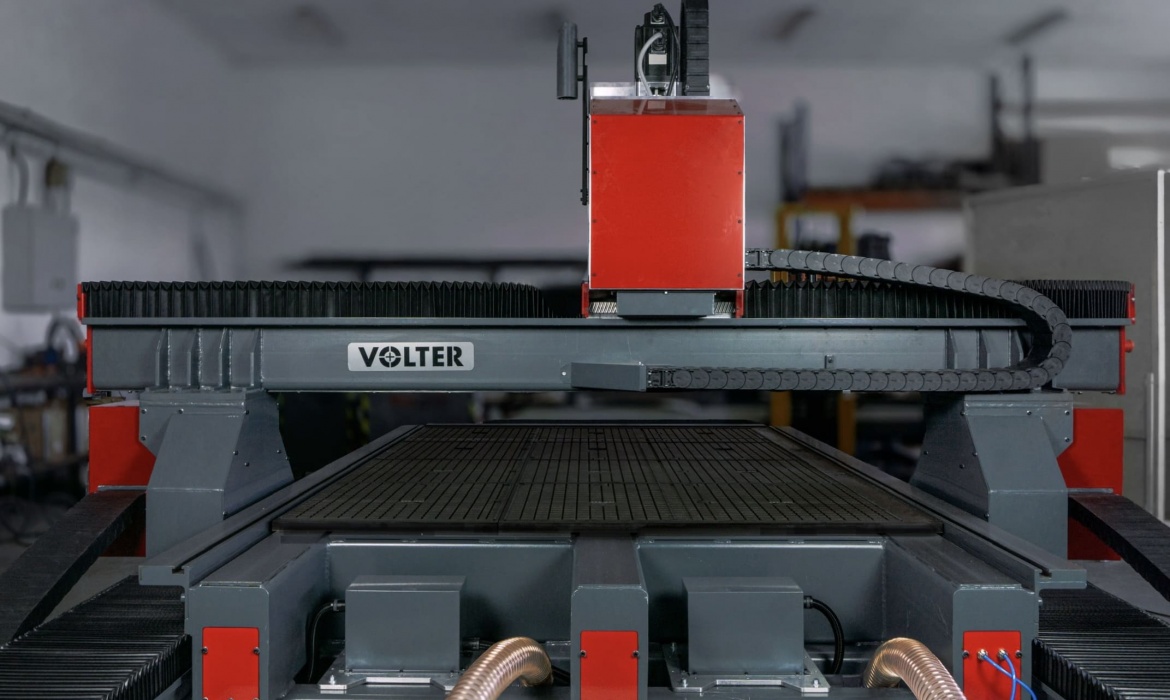

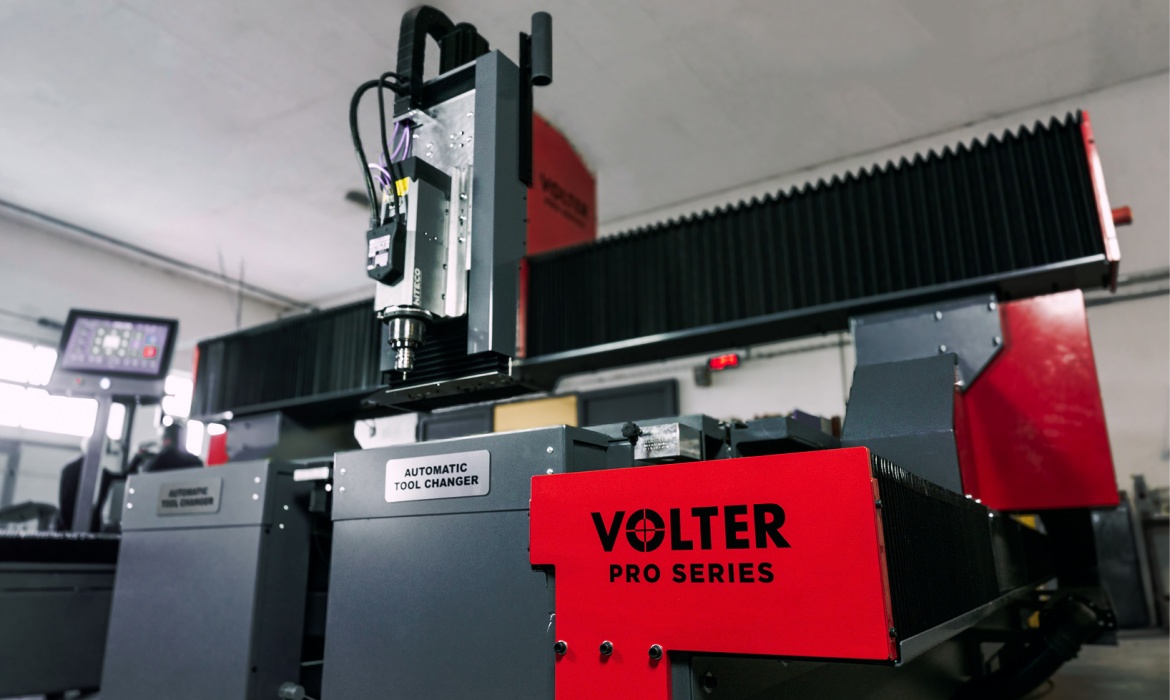

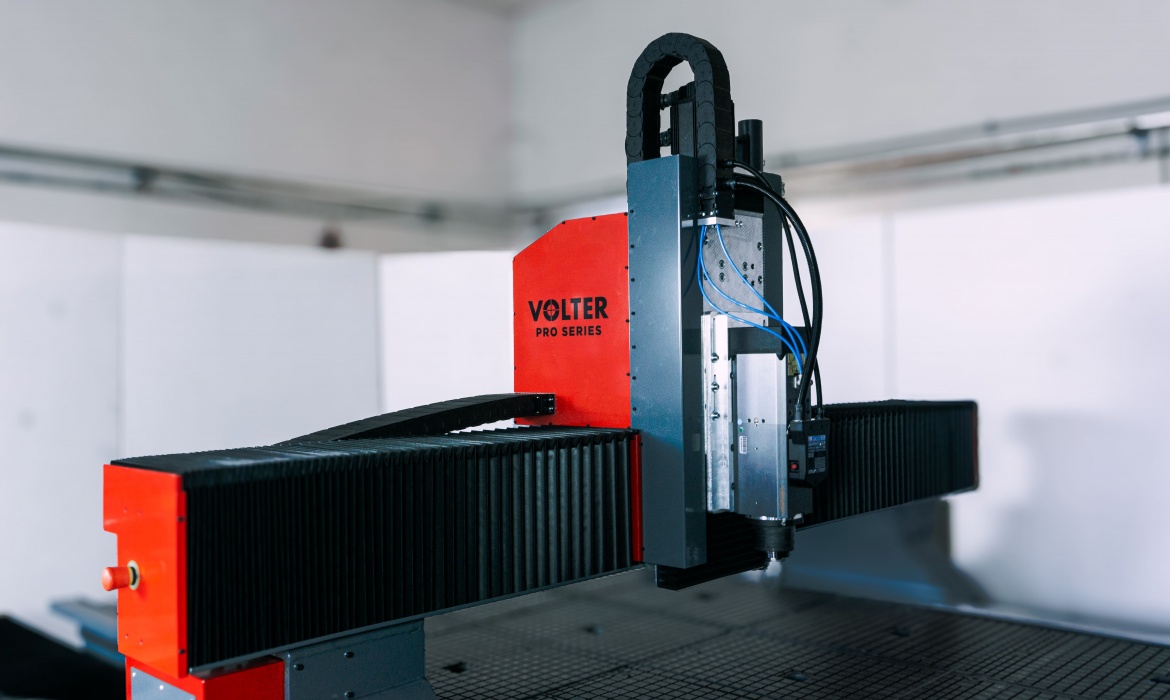

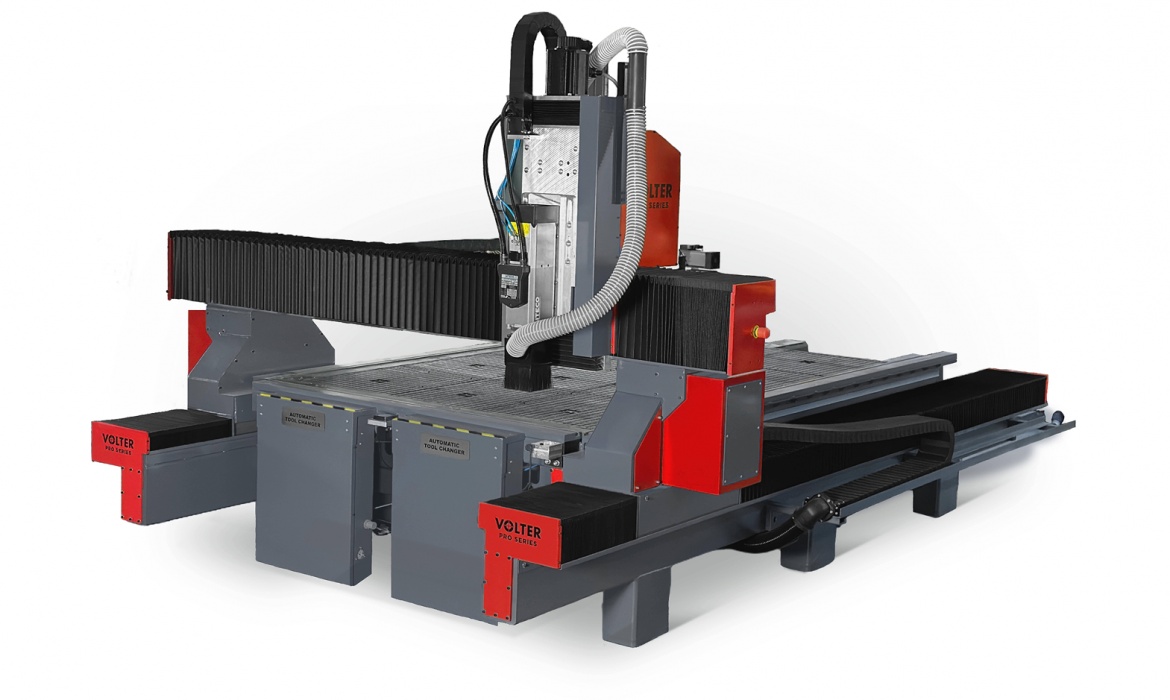

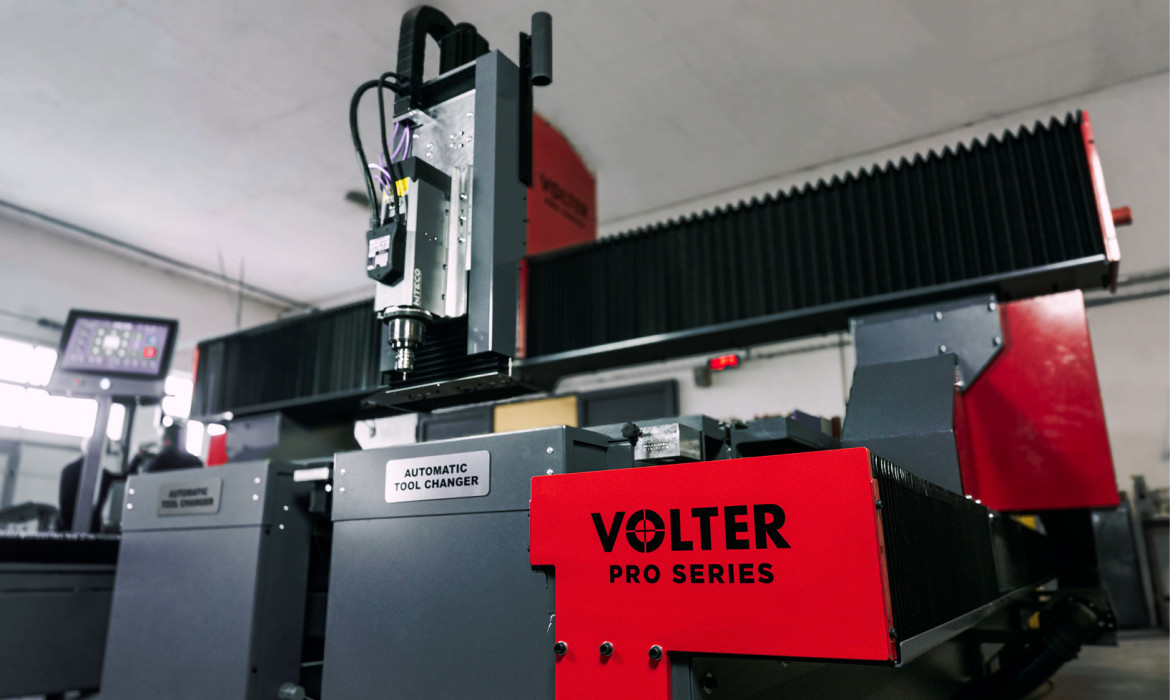

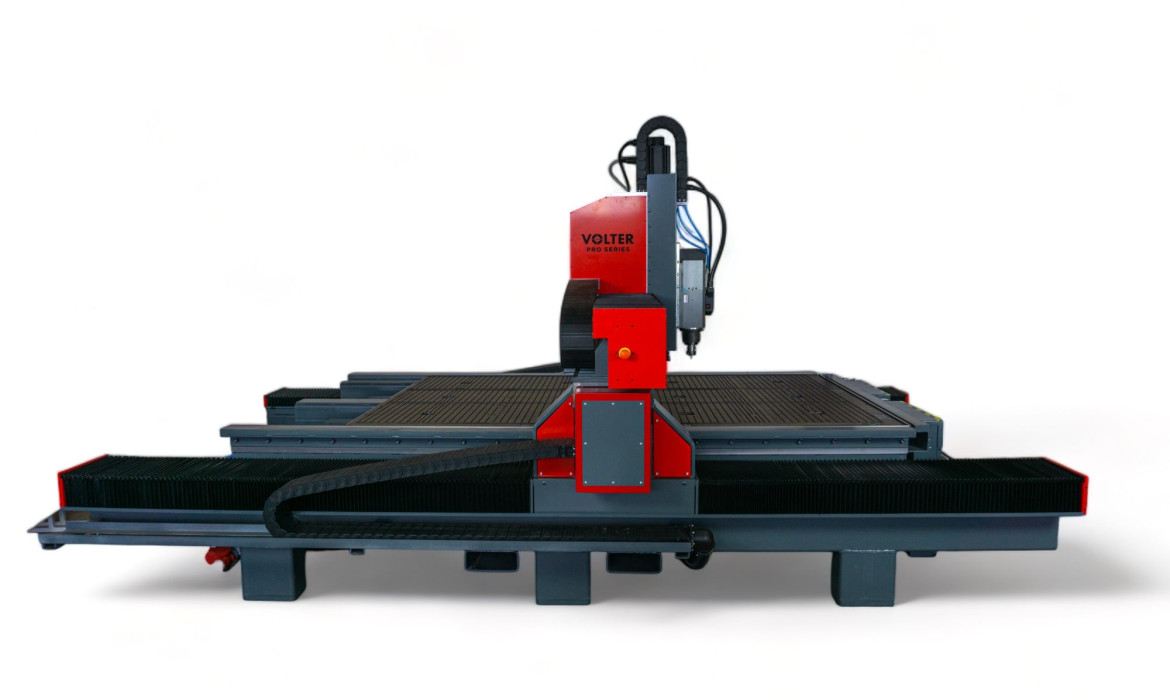

The Volter PRO series is a line of heavy-duty, industrial CNC Routers specifically designed for medium and large businesses.

PRO series machines provide the ideal solution for applications that require maximum accuracy, productivity, and better accuracy.

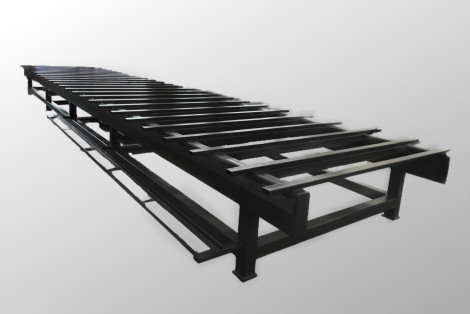

The steel frame is stronger and has more weight.  New design of processing area lets increase accuracy and productivity of processing.

The heavy steel frame reduces the vibration of the cutting tool, which increases the quality of processing and the life of the cutting tool.

Specification

Controller VOLTER CS
Max travel speed on X and Y axes, mm./sec. 800
Max travel speed on Z axis mm./sec. 150
Max thickness of material , mm. 200
Spindle power, kW from 10 to 16
Spindle rotation speed, RPM from 1 000  to 24 000
Tool clamping Pneumatic
Type of drives for X and Y axes Servo, planetary gear heads, helical racks
Type of drive for Z axis Servo, ball screw
Control panel 15" touch monitor

Model range

Model Processing area Dimensions Weight, kg
VOLTER XPro2016 2 200 * 1 600 mm 3 920 * 2 663 * 2 380 mm 3 800
VOLTER XPro3016 3 200 * 1 600 mm 4 920 * 2 663 * 2 380 mm 4 700
VOLTER XPro3020 3 200 * 2 100 mm 4 920 * 3 163 * 2 380 mm 5 300
VOLTER XPro4020 4 200 * 2 100 mm 5 920 * 3 163 * 2 380 mm 6 500

Configuration

Basic configuration
Brush foot
Touch-screen monitor
Spindles
Tool length sensor
Laser pointer of the zero point
Helical racks
Hand controller
Specification
VECTRIC VCarve Pro software
Tangential knife
Automatic tool changer
IP camera
Tool lubricator
Drag knife
Pressure foot
VOLTER Pneumatic Locator Pins (PLP) System
Vacuum pump BUSCH SAMOS 7,5 kW
Vacuum pump BUSCH MINK 4 kW
Dust collector MasterVac TS220
Dust collector MasterVac TS300
Basic configuration

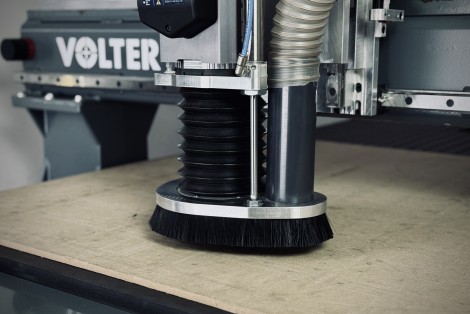

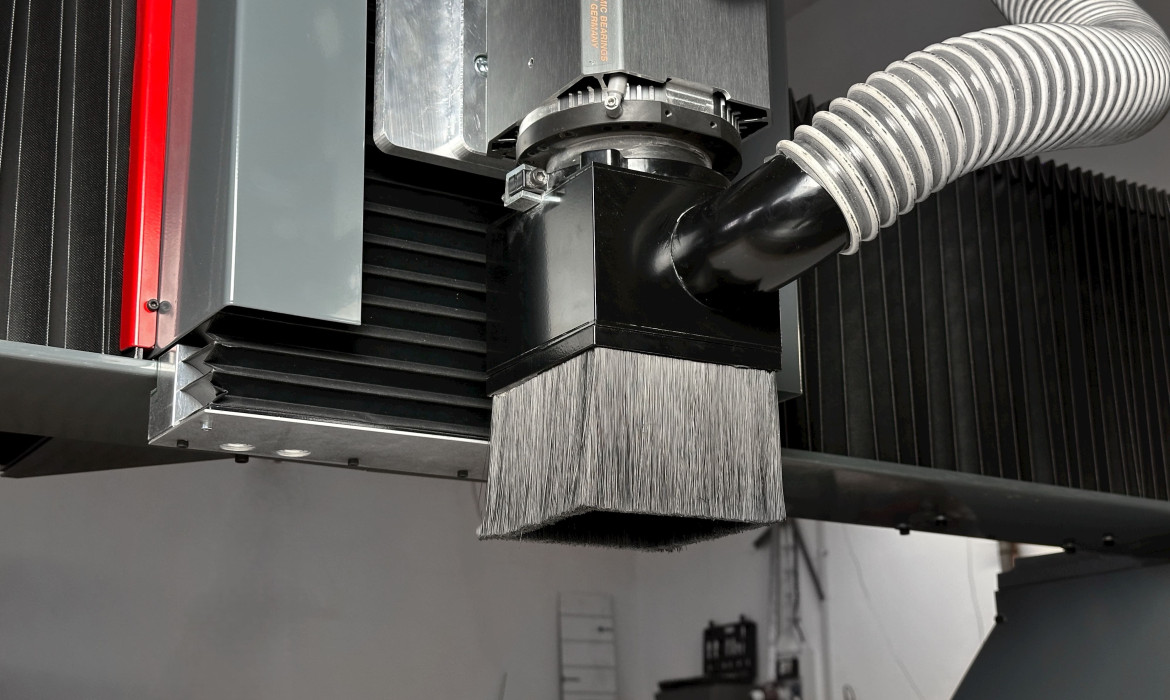

Brush foot

Designed to remove chips and waste from cutting zone.

Chips fall into a special chamber mounted on the spindle and are removed through a special pipe into the dust collector.

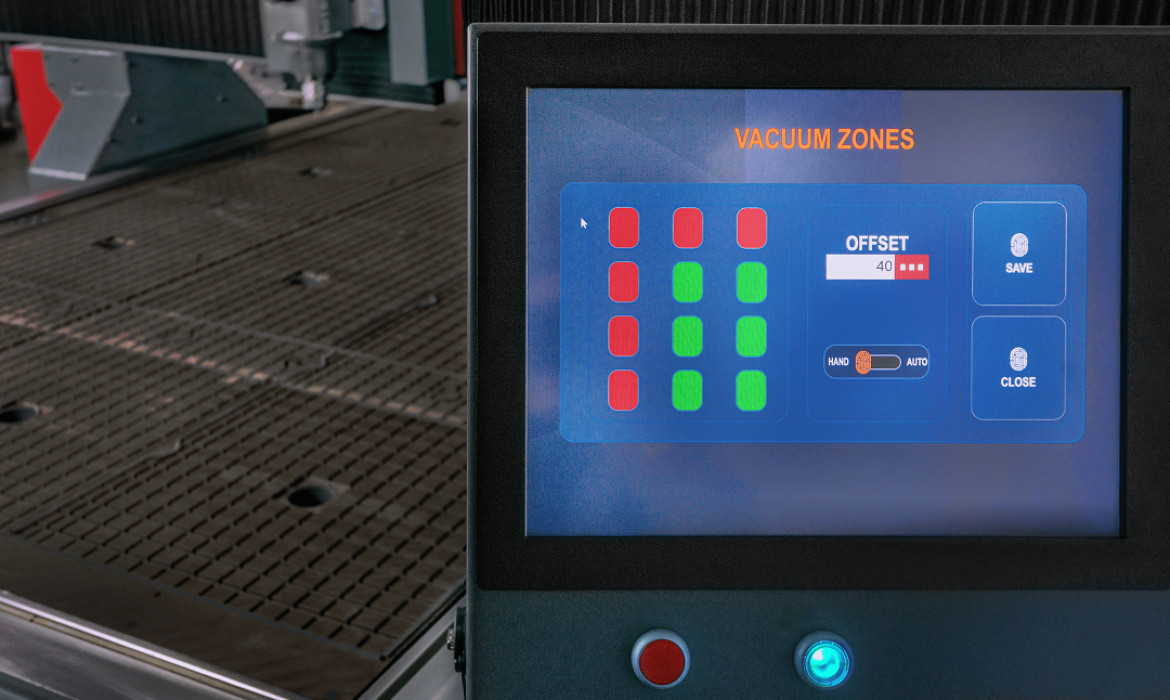

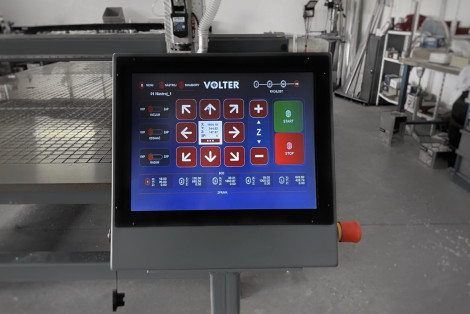

Touch-screen monitor

Touch-screen monitor is the main control panel of VOLTER CNC Routers. This monitor allows to control processing and change settings. User friendly interface has a modern, convenient and intuitive design.

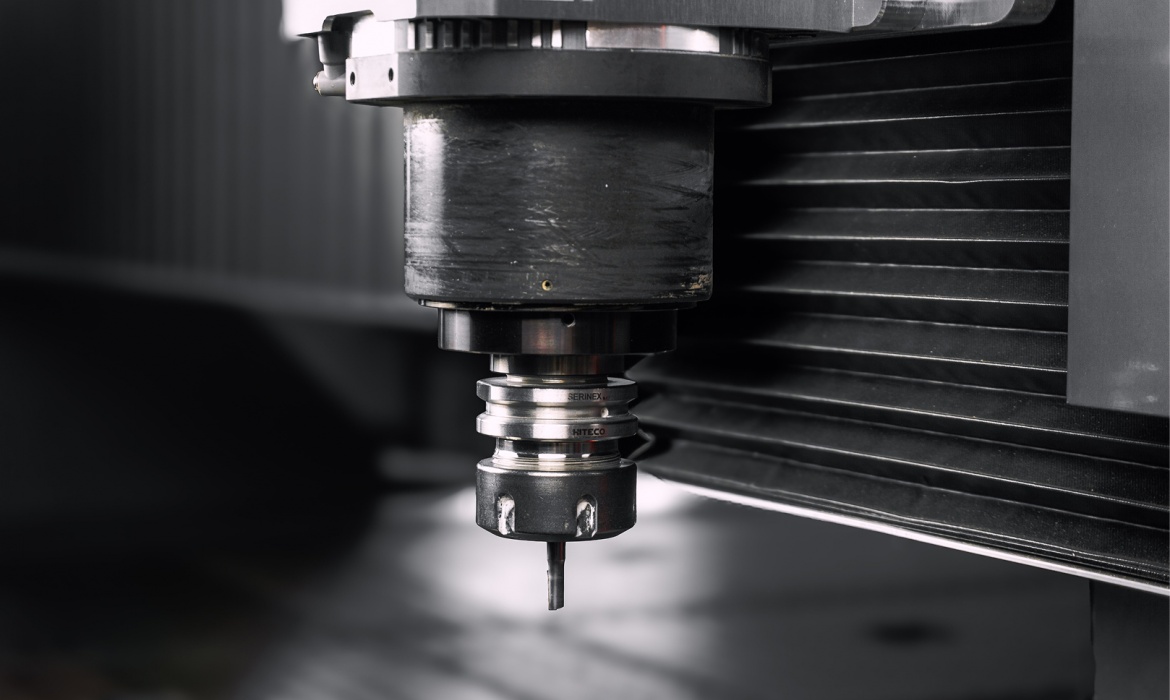

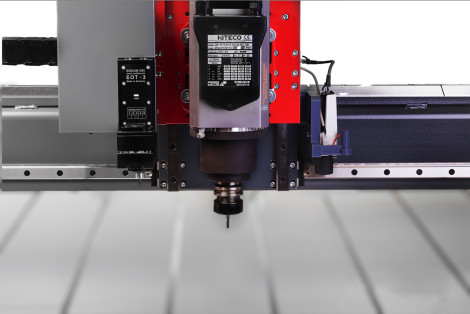

Spindles

VOLTER CNC Routers have air-cooled  spindles from HITECO (Italy) company with power from 10 to 16 kW. ER32 collets are used for all spindles. There is a choice between spindles with pneumatic or mechanical clamping. The maximum rotation speed is 24 000 RPM.

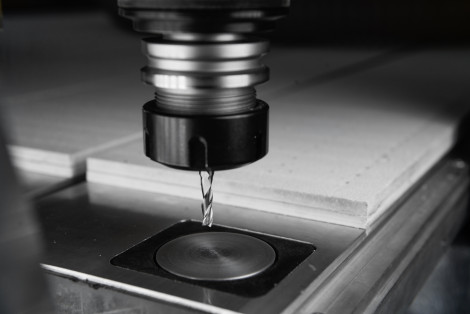

Tool length sensor

The sensor allows to measure the length of the bit quickly and accurately. It is enough to push a botton on touch screen monitor. Results of this measurement will be saved in the controller, which prevents damage of the working surface of the machine.

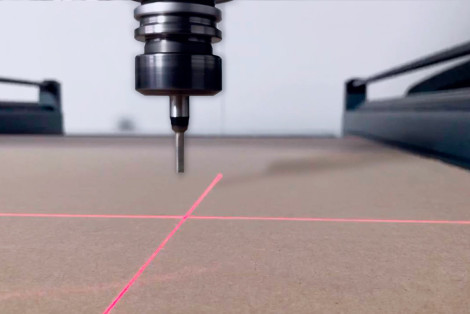

Laser pointer of the zero point

Laser pointer allows operator to set starting point of a job quickly and easily. It is enough for it to move the laser pointer to angle of sheet and click "Save" button on the touch screen monitor.

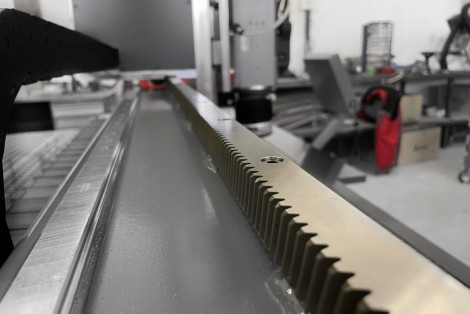

Helical racks

Helical racks set in X and Y axes. It increases the accuracy and quality of processing, reduce noise and vibrations during moving.

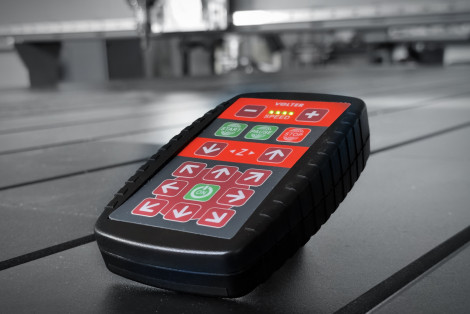

Hand controller

It is intended to move the cutting tool. It has an indication of the current speed of free movements and buttons to change this speed.

Specification

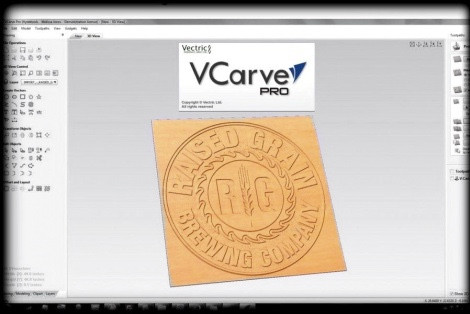

VECTRIC VCarve Pro software

VECTRIC VCarve Pro software to create and prepare 2D and 3D files for CNC Routers. Large selection of formats for importing files, intuitive interface.

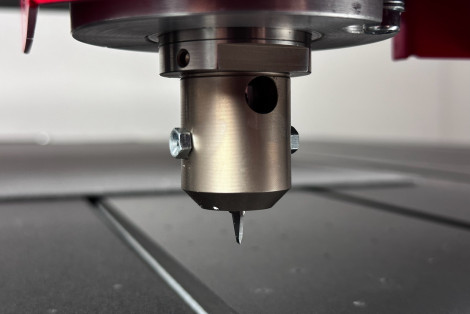

Tangential knife

The blade automatically rotates in the direction of cutting. Stepper motor is used to rotate the blade. It is possible to cut various materials by this knife: plastics, leather, fabrics, corrugated cardboard.

The oscillation mode of the blade allows to cut honeycomb materials, rubber and other soft materials.

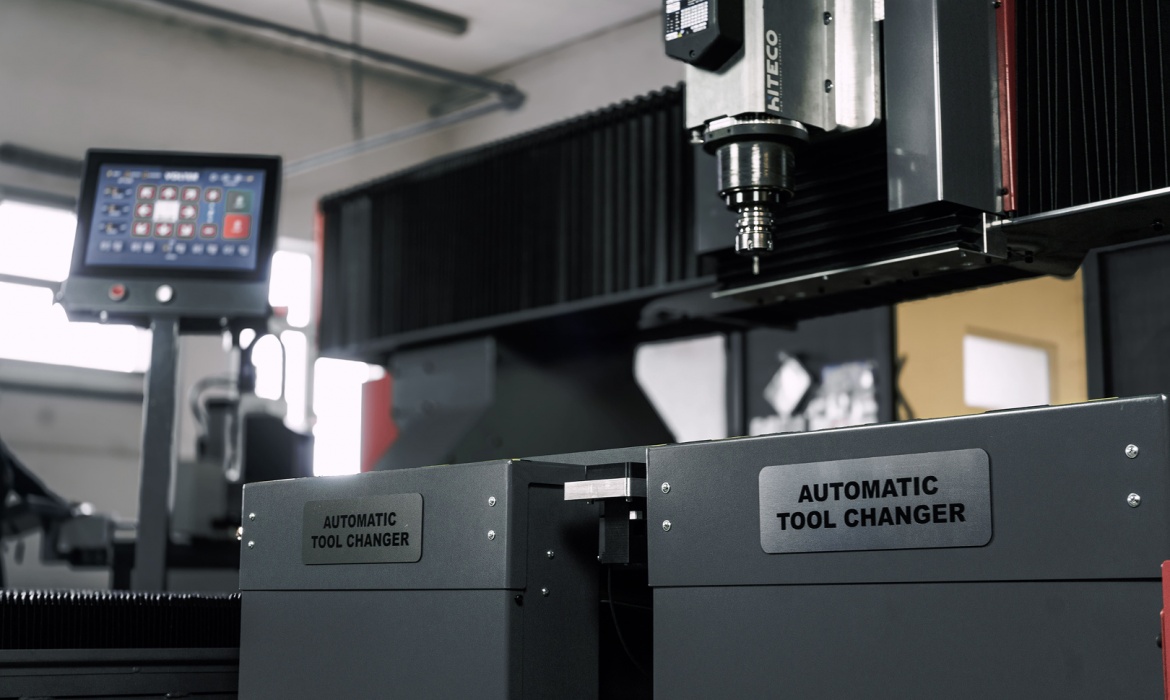

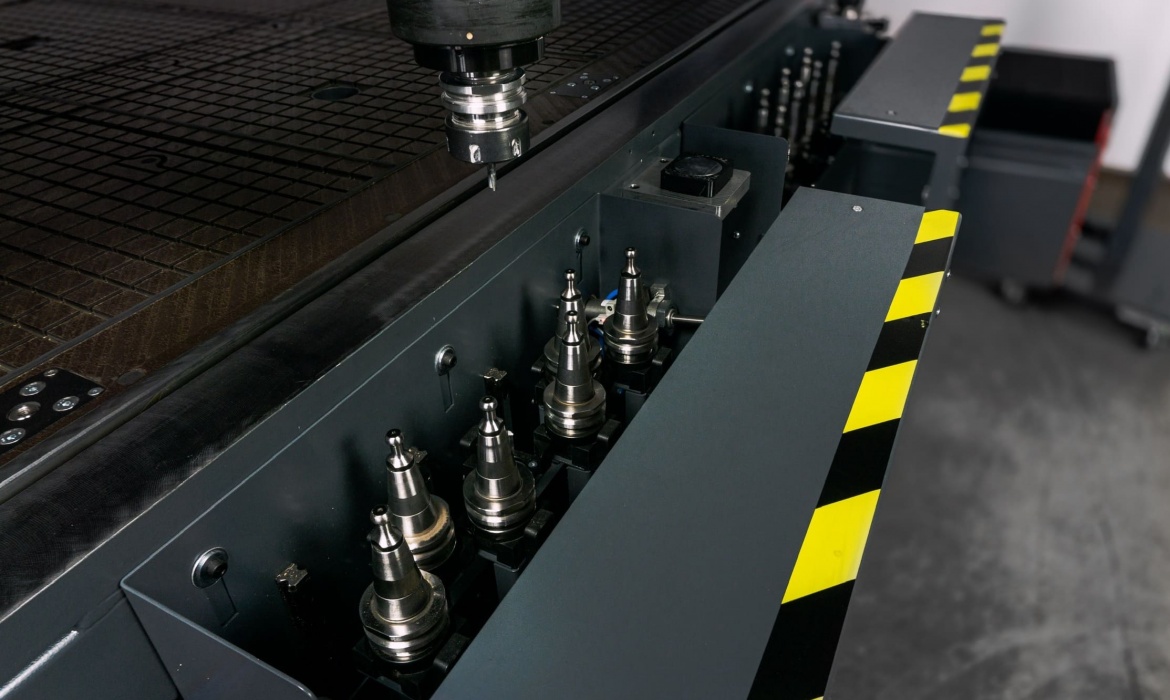

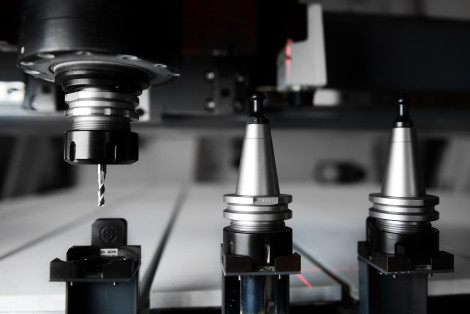

Automatic tool changer

This system automatically changes tools during processing. It lets to save time for jobs which need several tools for processing. Controller saves length of each tool in the system. As result, it is not nesesarry to measure tool length after changing of a tool by this system. VOLTER automatic tool changer has 7 positions for tools.

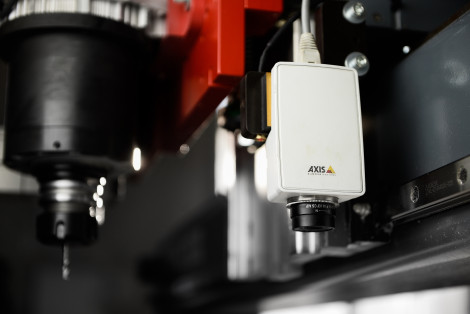

IP camera

The option allows to cut the printed image along the contour. When preparing a file for printing, marks are added to the file — black circles with a diameter of 5-8 mm placed behind the contour of the image to be cut.

Printed image is placed on the machine and after starting the job, the camera checks locations of marks. Special software of the machine make adjustments to the job file. It lets to cut printed image exactly on the contour regardless of geometric distortions encountered in print and location of printed image on the machine.

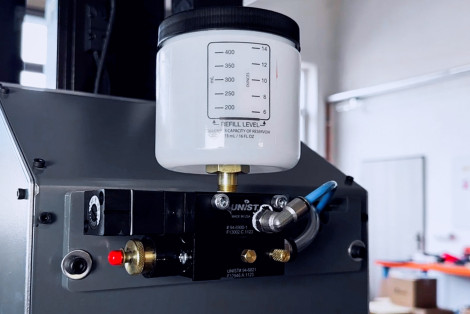

Tool lubricator

The system carries out a dosed supply to the cutting zone of lubricant emulsion or air flow. Continuous supply of lubricant (in the form of oil mist) or compressed air lets to maximize tool lifetime, improve  quality of processing and increase speed of processing.  It is necessary to connect an external pressed air supply with a working pressure of at least 6 bar to operate this lubrication system.

Drag knife

This knife is efficient and reliable solution for cutting polymer materials and corrugated board. The main application is cutting along the contour of figures from corrugated cardboard, sheet vinyl, and other polymer sheets. The principle of operation of this knife is that the cutter has free rotation. Tip of the blade due has displacement relative to the axis of rotation. As result, the knife is turned by the cutting edge in the direction of tool movement due to the material resistance.

Pressure foot

This device press on the material around cutting tool to provide high-quality processing of uneven and flexible materials. It is recommended for the processing of warped or curved sheets of a rigid material (for example, aluminum) and for the processing of thin and soft materials.  This device can be also used to remove chips and dust during cutting.

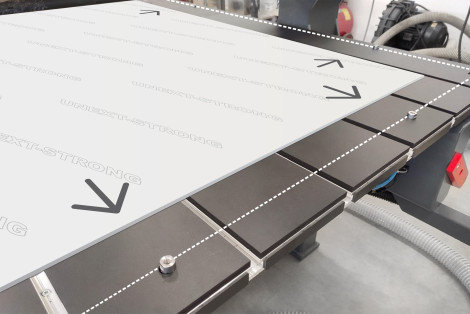

VOLTER Pneumatic Locator Pins (PLP) System

VOLTER Pneumatic Locator Pins lets to improve the performance of our machines for repeatable placement of cutting materials on table.

This system has 2 modes: hand and auto. In hand mode operator can raise and lower locator pins by button on touch screen monitor. In auto mode pins raise after finish of job and lower after start of new job.

Two rows of pneumatic cylinders make the material placement process faster and more precise.

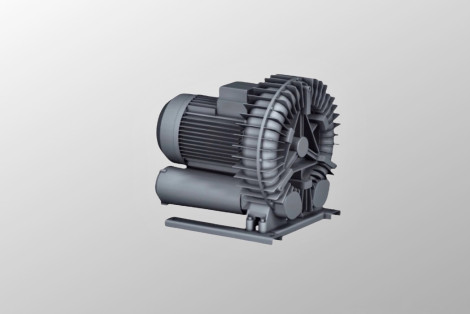

Vacuum pump BUSCH SAMOS 7,5 kW

High efficient 7.5 kW vortex blower is supplied complete with air filter, pressure gauge, safety valve and fittings for connecting to the machine. Do not require maintenance during the entire life cycle.

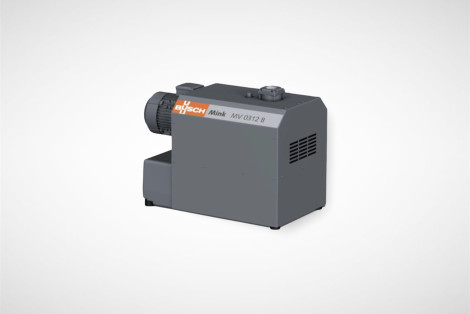

Vacuum pump BUSCH MINK 4 kW

Rotary vacuum pumps Busch MINK (Germany) are an effective and reliable solution for vacuum hold down of materials. The cam rotors do not come into contact with each other or with the cylinder in which they rotate. The extremely small clearances between the cam rotors and the casing optimize the internal seal and guarantee a consistently high pumping speed without using of lubricating fluids.

Dust collector MasterVac TS220

TS 220 is a reliable industrial dust collector for removing chips and dust during processing of various materials. The model is designed to work in the most hard operating conditions. Equipped with an industrial three-phase electric motor 400 V / 2200 W and a vacuum turbine with a side channel. The dust collector has a 30 l chip storage tank.

Dust collector MasterVac TS300

TS 300 is a reliable industrial dust collector for removing chips and dust during processing of various materials. The model is designed to work in the most hard operating conditions. Equipped with an industrial three-phase electric motor 400 V / 2200 W and a vacuum turbine with a side channel. The dust collector has a 100 l chip storage tank.
