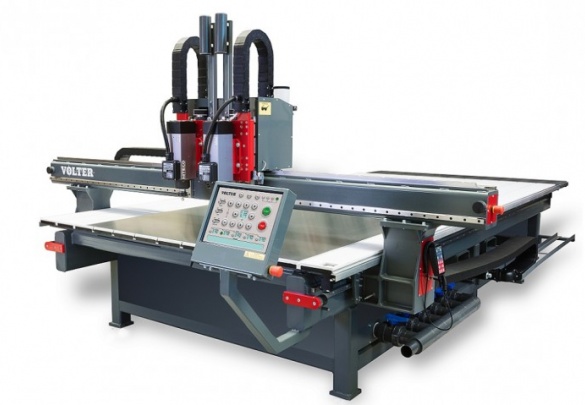

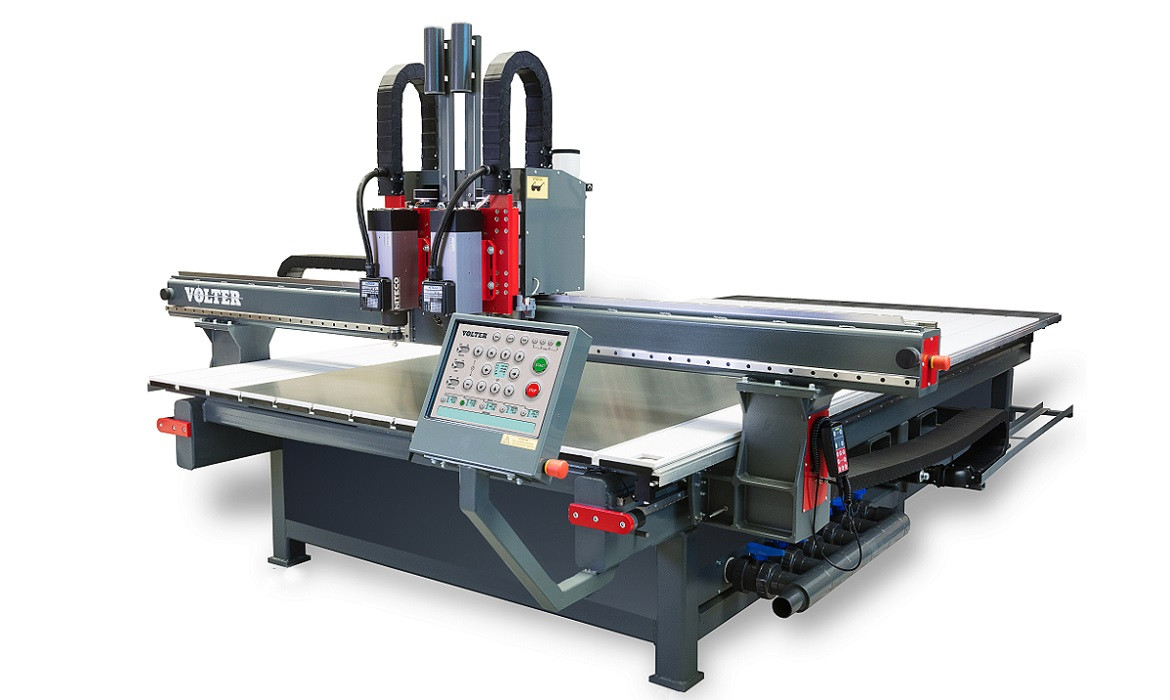

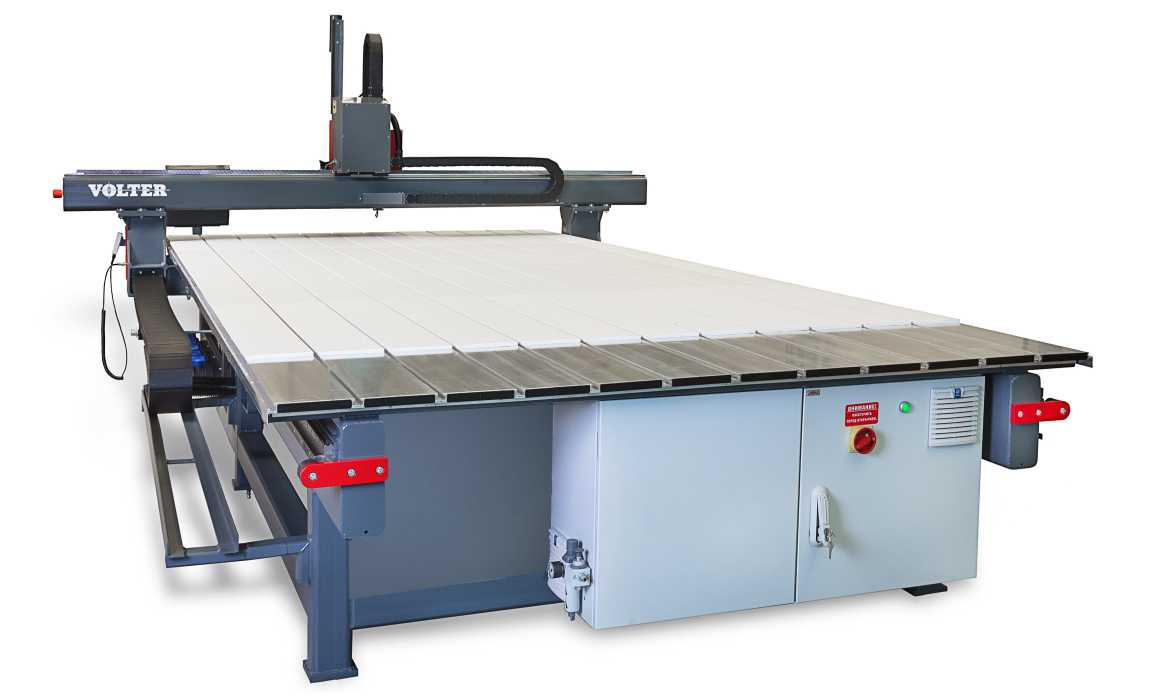

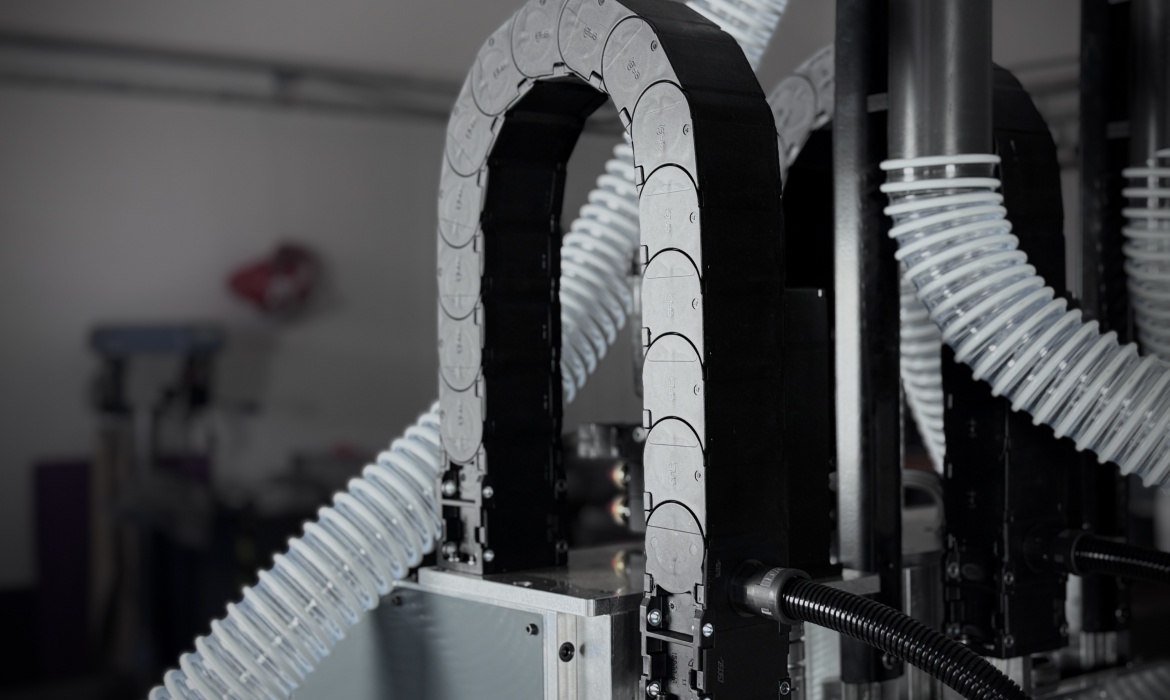

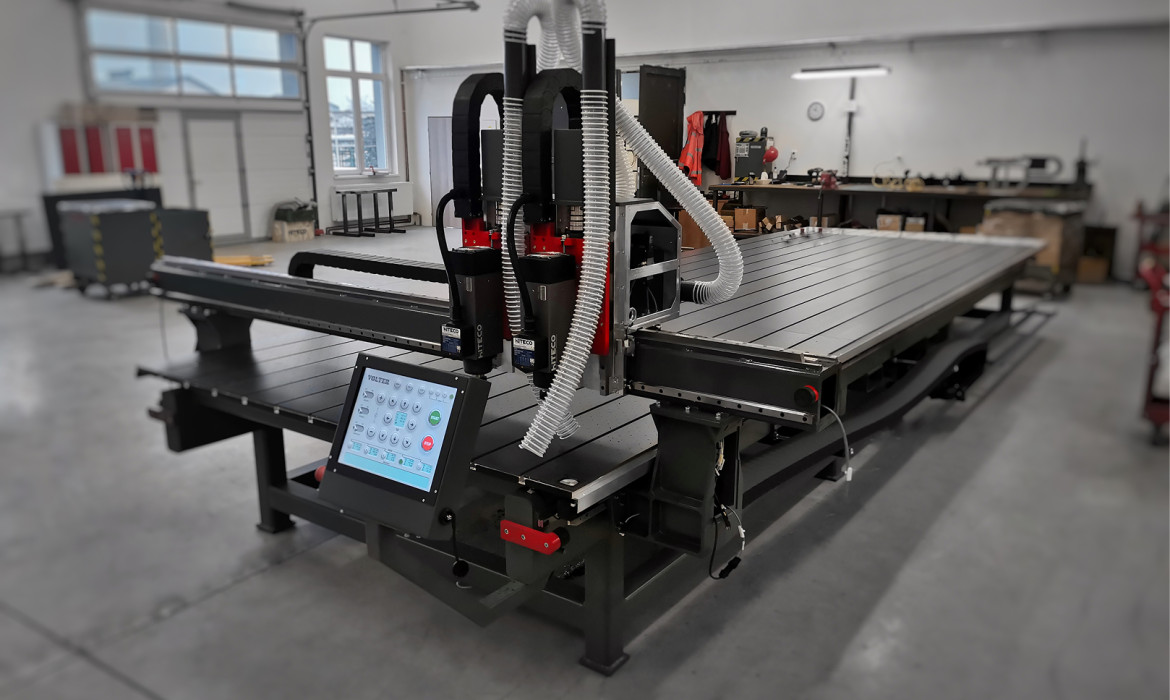

VOLTER ACP series CNC Routers are specially designed for processing of composite panels (ACP), HPL panels, fiber cement boards and aluminum sheets.

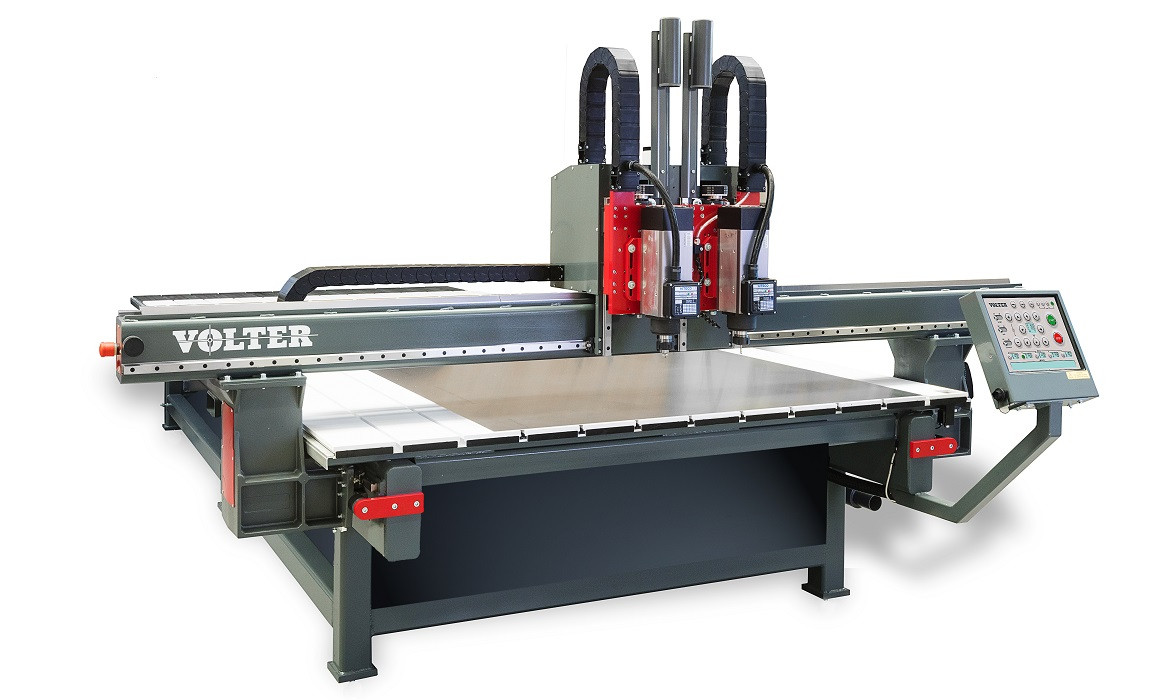

These machines have processing area from 3,200*1,610mm to 6,200*2,150mm. This dual spindle version allows to process materials faster, more efficiently and at reduced cost. Processed materials can be easily fixed by vacuum hold down or mechanically.

Like other VOLTER CNC Routers, the ACP series has a heavy steel frame with thermal stabilization.

Specification
Model range
Basic configuration
Controller VOLTER CS
Max travel speed on X and Y axes, mm./sec. 500 (30 m./min.)
Max travel speed on Z axis mm./sec. 100 (6 m./min.)
Max thickness of material , mm. 160
Spindle power, kW 4.5 to 6.6
Spindle rotation speed, RPM from 1 000 to 24 000
Tool clamping mechanical or pneumatic

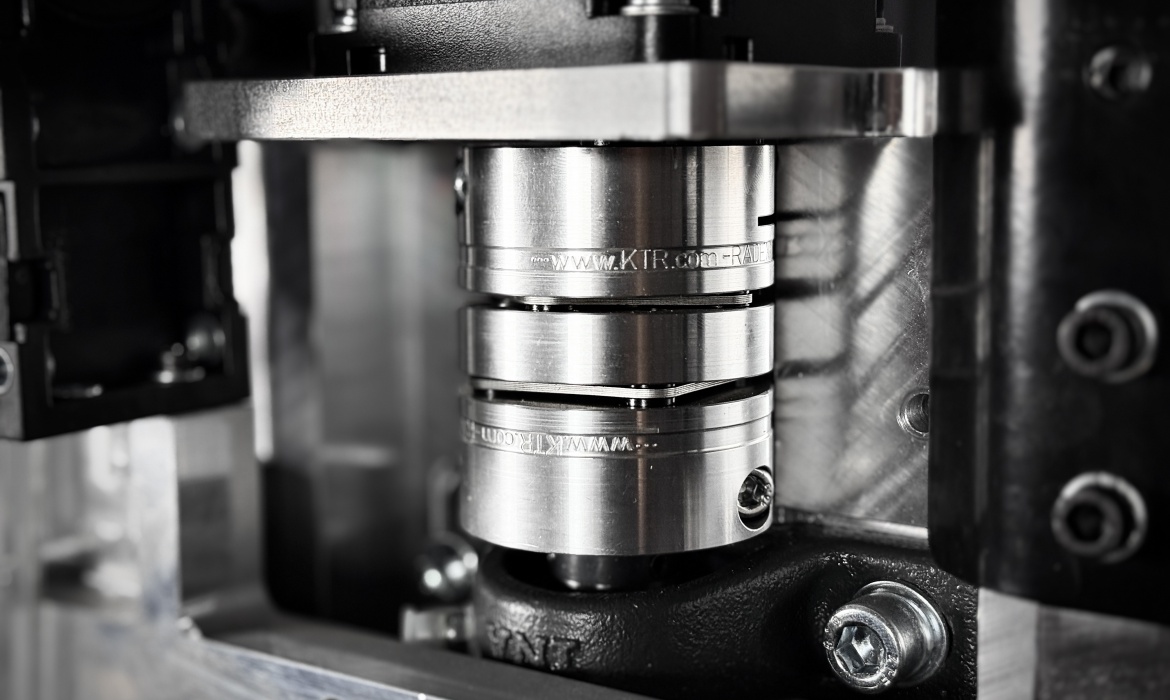

Type of drives for X and Y axes Servo, planetary gear heads, helical racks
Type of drive for Z axis Servo, ball screw
Control panel 15" touch monitor
Model Processing area Dimensions Weight, kg
VOLTER ACP3016 3 200 * 1 610 mm 4 300 * 2 100 * 1 600 mm 1 500
VOLTER ACP3020 3 200 * 2 150 mm 4 300 * 2 600 * 1 600 mm 1 800
VOLTER ACP4016 4 200 * 1 610 mm 5 300 * 2 100 * 1 600 mm 1 600
VOLTER ACP4020 4 200 * 2 150 mm 5 300 * 2 600 * 1 600 mm 2 200
VOLTER ACP6016 6 200 * 1 610 mm 7 300 * 2 100 * 1 600 mm 2 600
VOLTER ACP6020 6 200 * 2 150 mm 7 300 * 2 600 * 1 600 mm 3 100



Basic configuration:

  • Vacuum table
  • Tool length sensor
  • Brush foot
  • Laser pointer
  • Helical racks

Options:

  • Tool lubricator
  • Vacuum pump
  • Dust collector 3kW with 2 bags
  • Dust collector MasterVac TS220
  • Vectric VCarve Pro software
1/
Basic configuration
Steel base frame

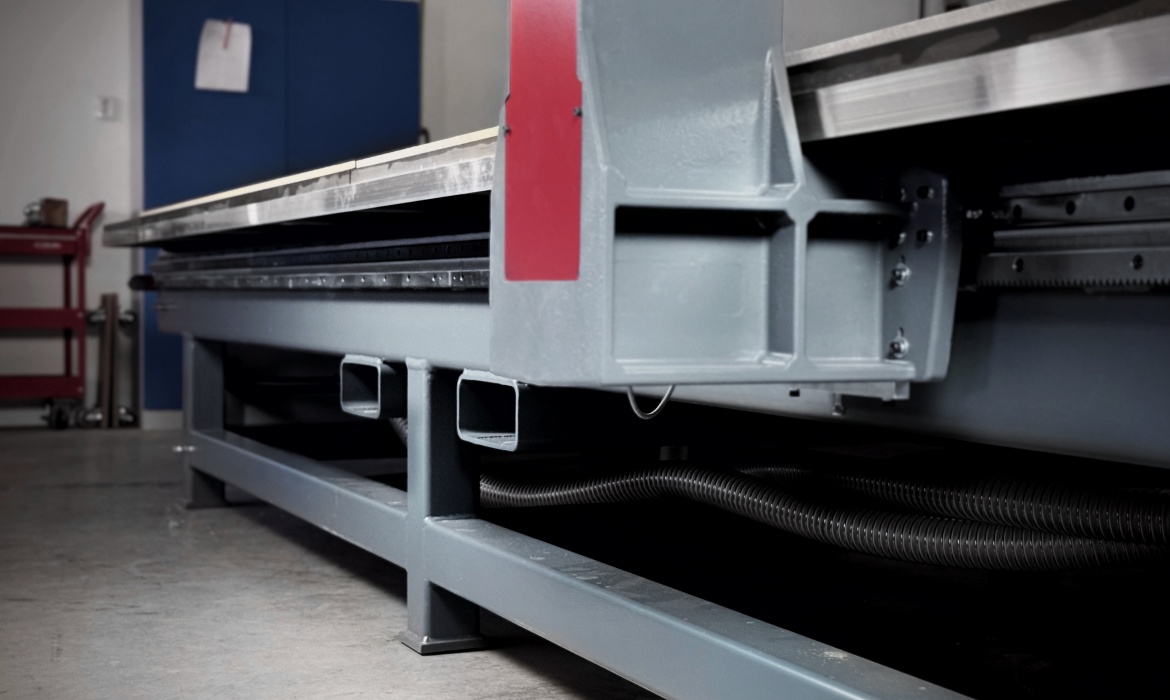

Steel frames of VOLTER machines is welded from cold-rolled steel pipes. Each frame undergoes thermal stabilization to maintain its geometric dimensions for the full lifetime of the machine. The seats for the installation of linear guides and helical racks are processed by high-precision machining center.

Touch-screen monitor

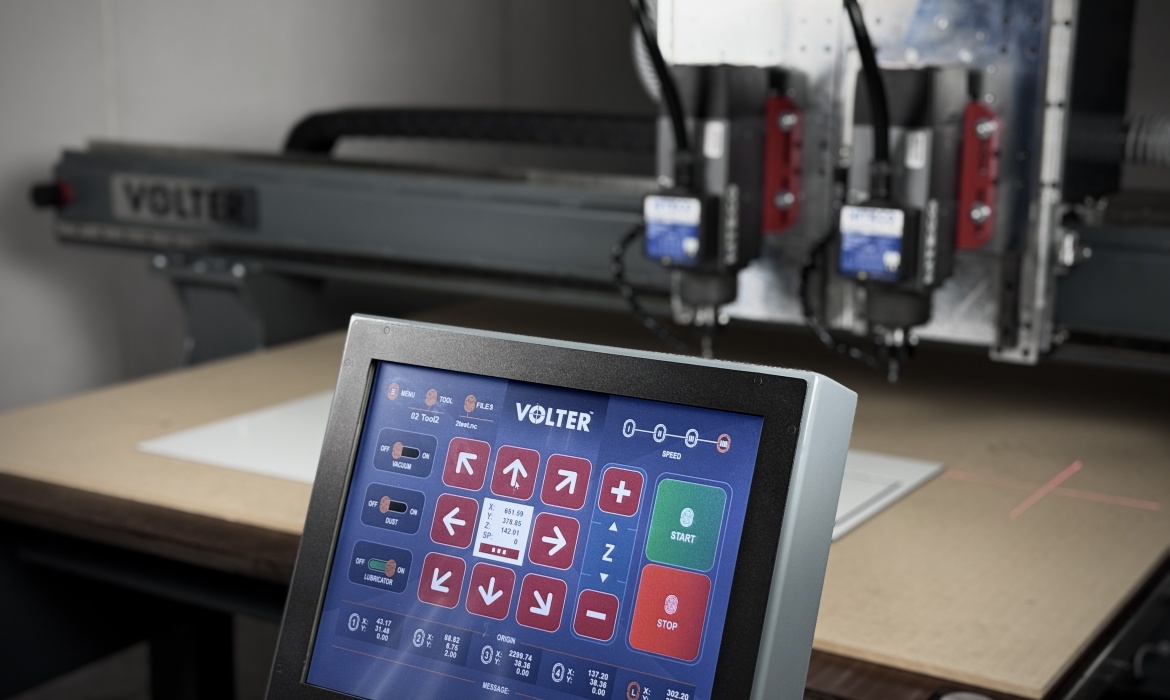

Touch-screen monitor is the main control panel of VOLTER CNC Routers. This monitor allows to control processing and change settings. User friendly interface has a modern, convenient and intuitive design.

Laser pointer of the zero point

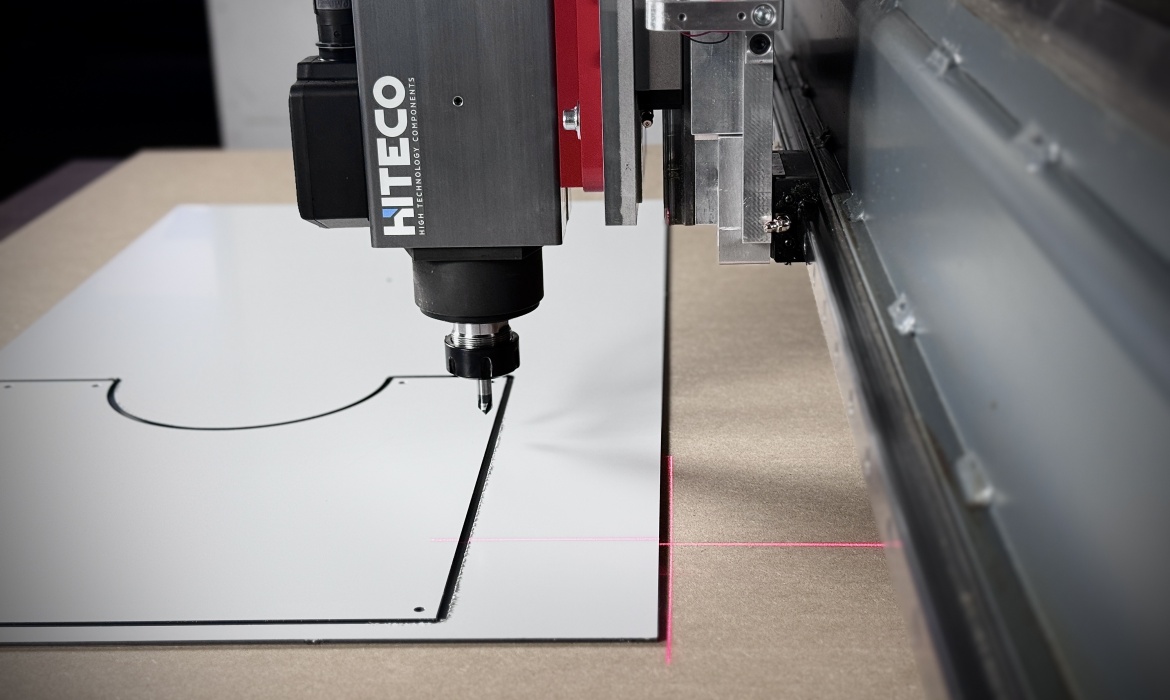

Laser pointer allows operator to set starting point of a job quickly and
easily. It is enough for it to move the laser pointer to angle of sheet and click "Save" button on the touch screen monitor.

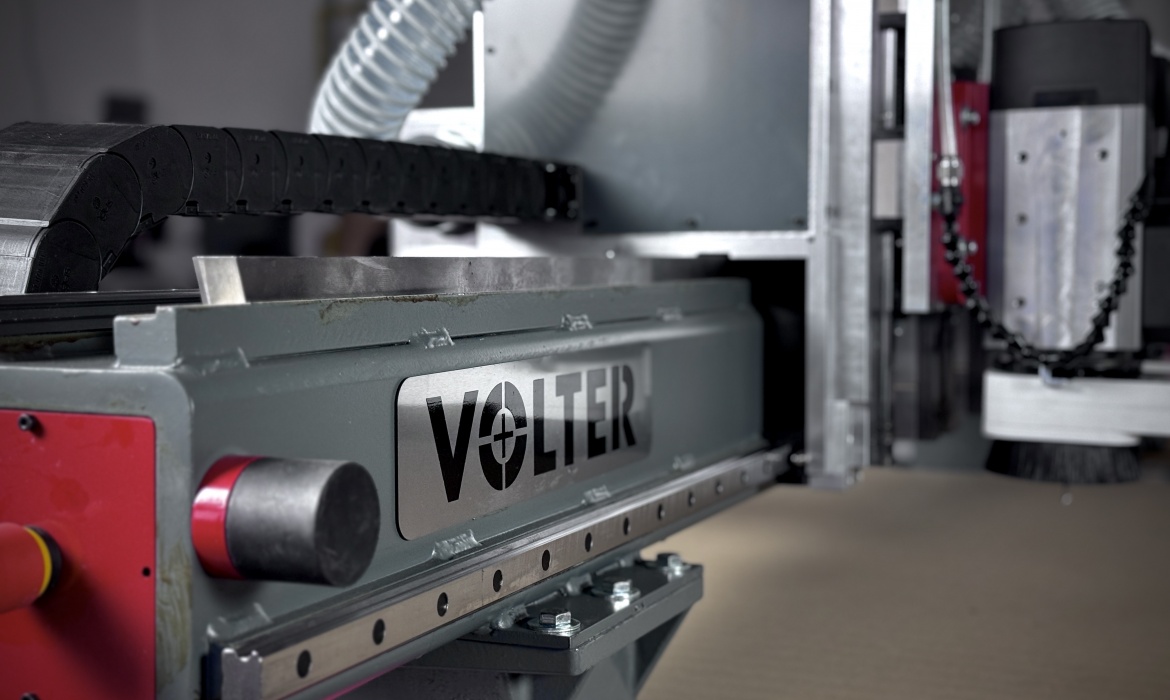

Helical racks

Helical racks set in X and Y axes. It increases the accuracy and quality of processing, reduce noise and vibrations during moving.

Hand controller

It is intended to move the cutting tool. It has an indication of the current speed of free movements and buttons to change this speed.

Vacuum table

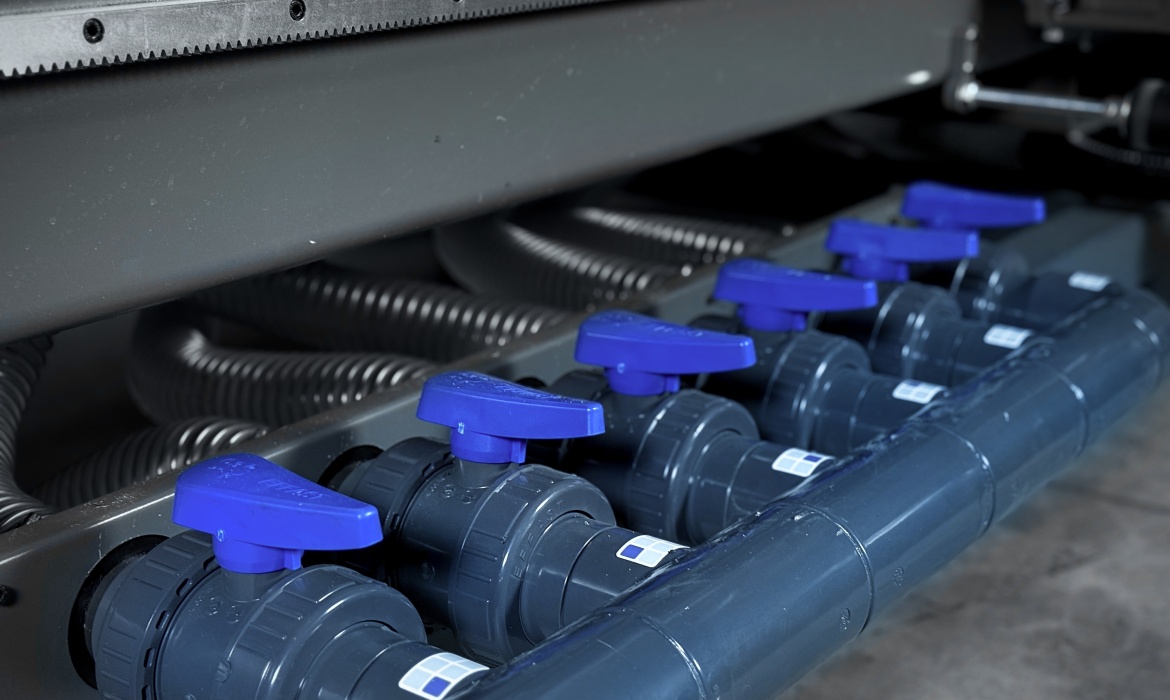

Vacuum hold down is the most effitient solution for fixing the material on the machine during processing. The vacuum table consists of extruded aluminum profiles, a sacrificial PVC layer and a system of hvacuum valves for controlling the vacuum zones. Quantity of vacuum zones varies from 4 to 12 depending on the size of the working field of the machine.

Tool length sensor

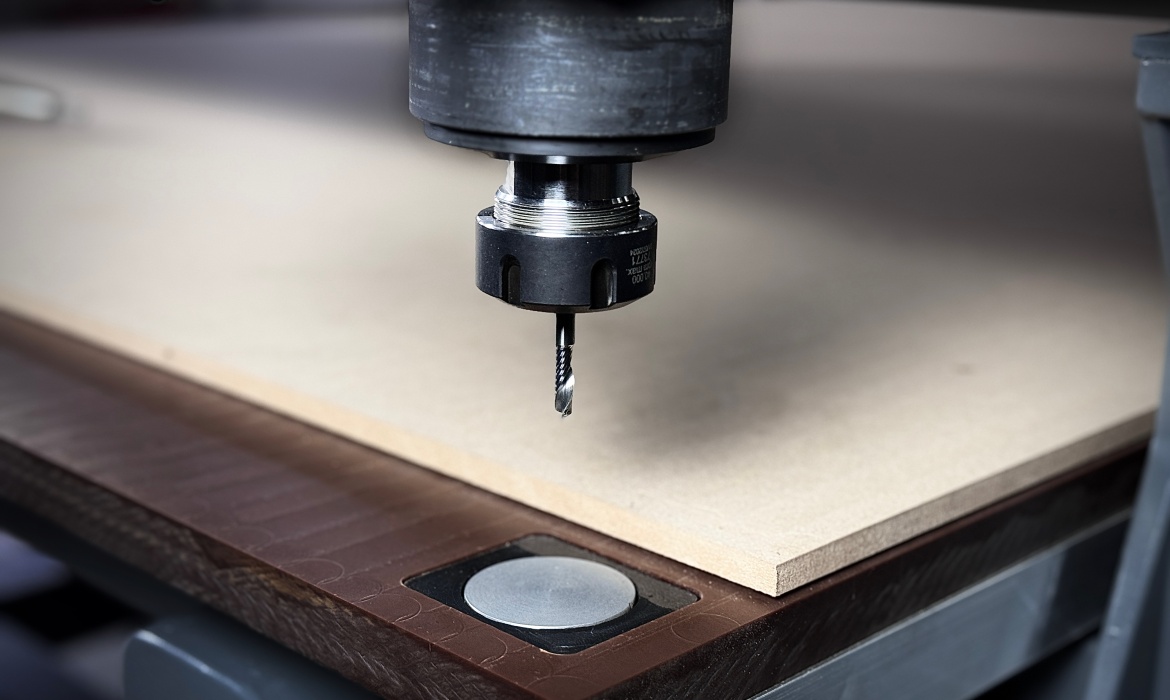

The sensor measures accurately and quickly the length of the tool. The operator need only press a button on the touch screen monitor, and this measurement will be performed.

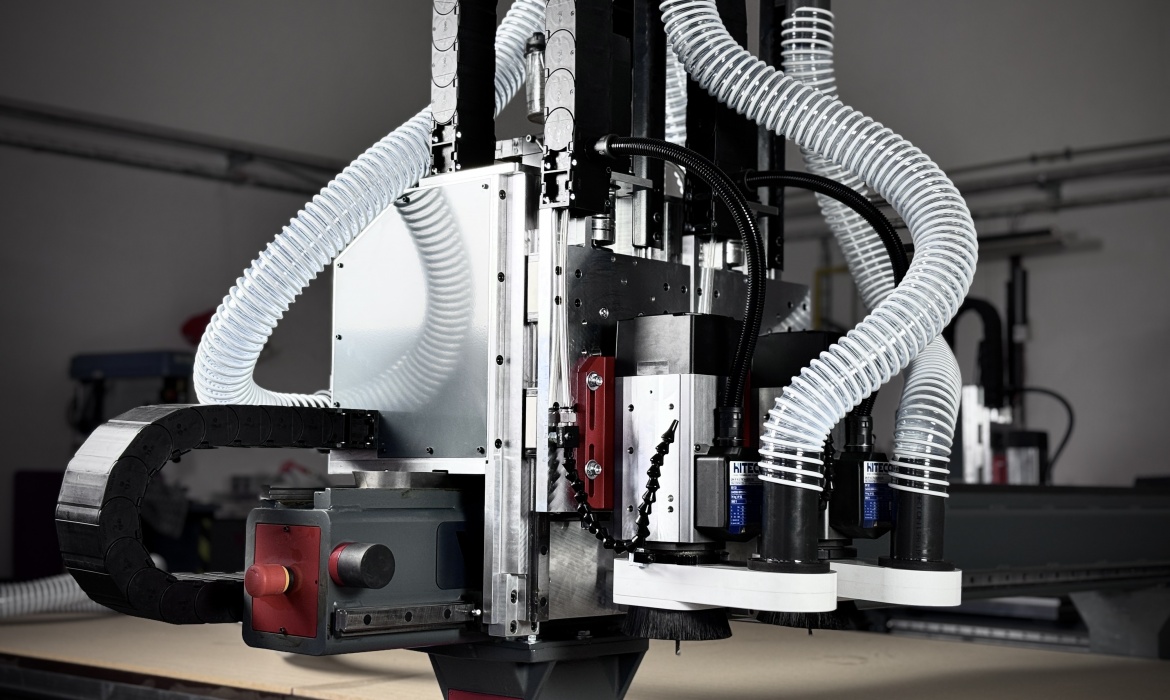

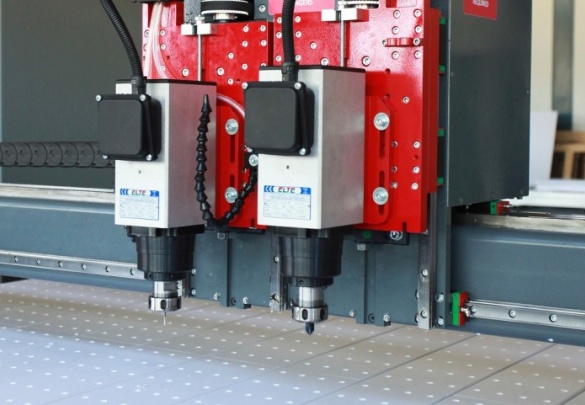

Spindles

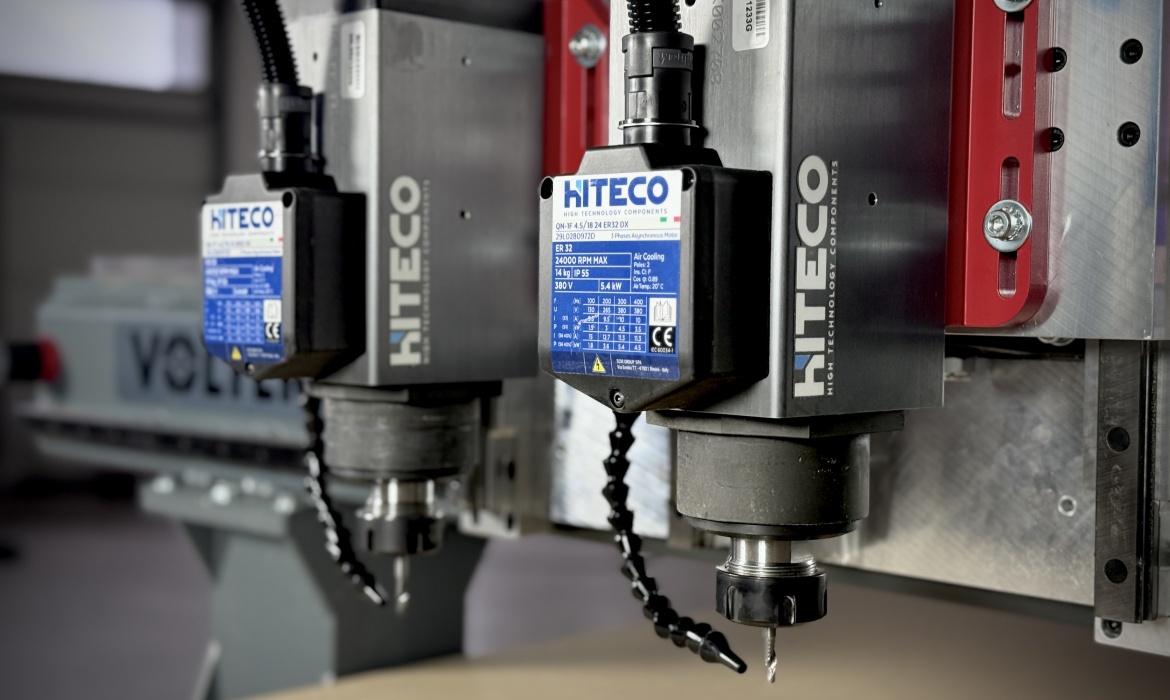

VOLTER CNC Routers have air-cooled  spindles from HITECO (Italy) company with power from 4 to 10 kW. ER32 collets are used for all spindles. There is a choice between spindles with pneumatic or mechanical clamping. The maximum rotation speed is 24 000 RPM.

Brush foot

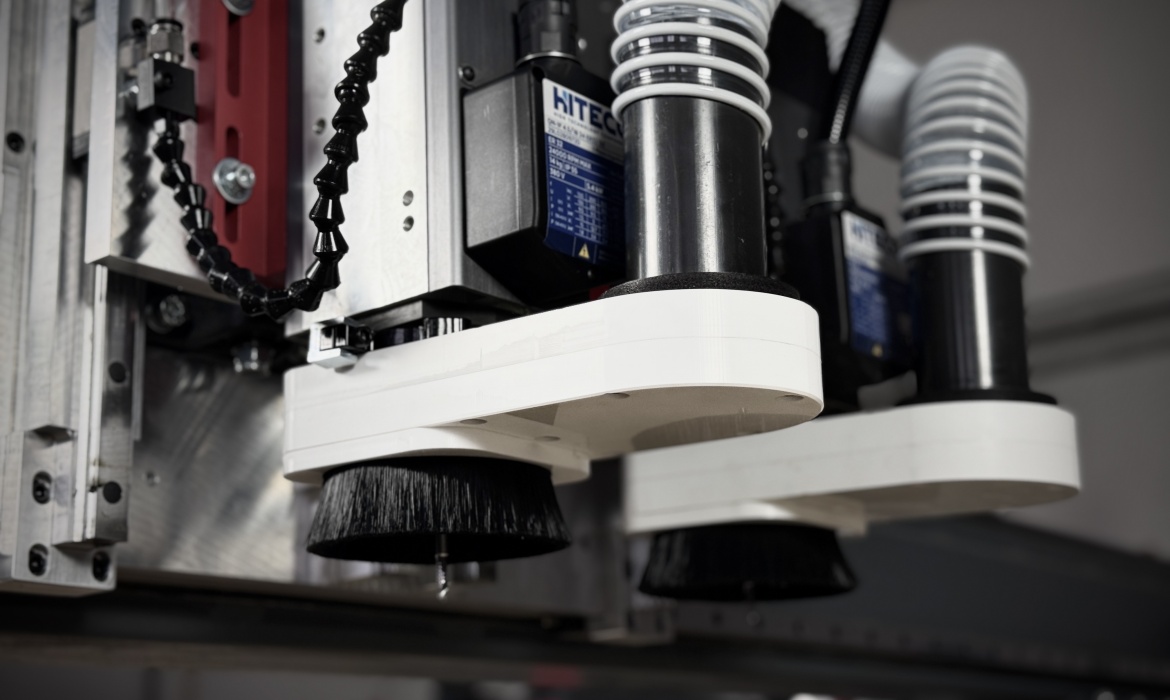

Designed to remove chips and waste from cutting zone.

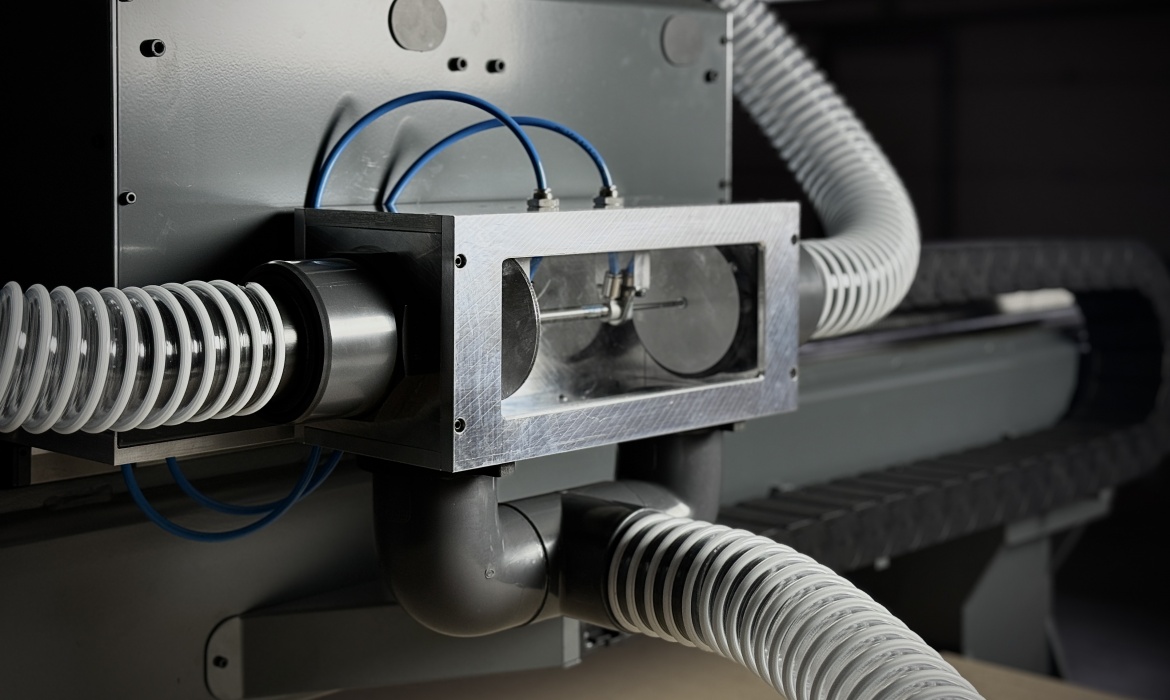

Chips fall into a special chamber mounted on the spindle and are removed through a special pipe into the dust collector.

Options
VECTRIC VCarve Pro software

VECTRIC VCarve Pro software to create and prepare 2D and 3D files for CNC Routers. Large selection of formats for importing files, intuitive interface.

VOLTER Pneumatic Locator Pins (PLP) System

VOLTER Pneumatic Locator Pins lets to improve the performance of our machines for repeatable placement of cutting materials on table.

This system has 2 modes: hand and auto. In hand mode operator can raise and lower locator pins by button on touch screen monitor. In auto mode pins raise after finish of job and lower after start of new job.

Two rows of pneumatic cylinders make the material placement process faster and more precise.

Phenolic vacuum table

The phenolic vacuum table provides a stronger vacuum pressure of the material on the surface. Almost perfectly flat working surface. Almost perfectly flat work surface. This solution allows quick replacement of the exposed layer on the working surface of the machine. It is an excellent choice for working with plastic, acrylic, composite and leather.

Drag knife

This knife is efficient and reliable solution for cutting polymer materials and corrugated board. The main application is cutting along the contour of figures from corrugated cardboard, sheet vinyl, and other polymer sheets. The principle of operation of this knife is that the cutter has free rotation. Tip of the blade due has displacement relative to the axis of rotation. As result, the knife is turned by the cutting edge in the direction of tool movement due to the material resistance.

Vacuum Pump

7.5 kW vortex blower are supplied complete with an air filter, pressure gauge and safety valve. It does not require servicing during its entire life cycle.

Dust collector MasterVac TS220

Reliable and high efficient dust collector with fabric filter and low noise level

Tool lubricator

The system carries out a dosed supply to the cutting zone of lubricant emulsion or air flow. Continuous supply of lubricant (in the form of oil mist) or compressed air lets to maximize tool lifetime, improve  quality of processing and increase speed of processing.  It is necessary to connect an external pressed air supply with a working pressure of at least 6 bar to operate this lubrication system.

Pressure foot

This device press on the material around cutting tool to to provide high-quality processing of uneven and flexible materials. It is recommended for the processing of warped or curved sheets of a rigid material (for example, aluminum) and for the processing of thin and soft materials.  This device can be also used to remove chips and dust during cutting.
