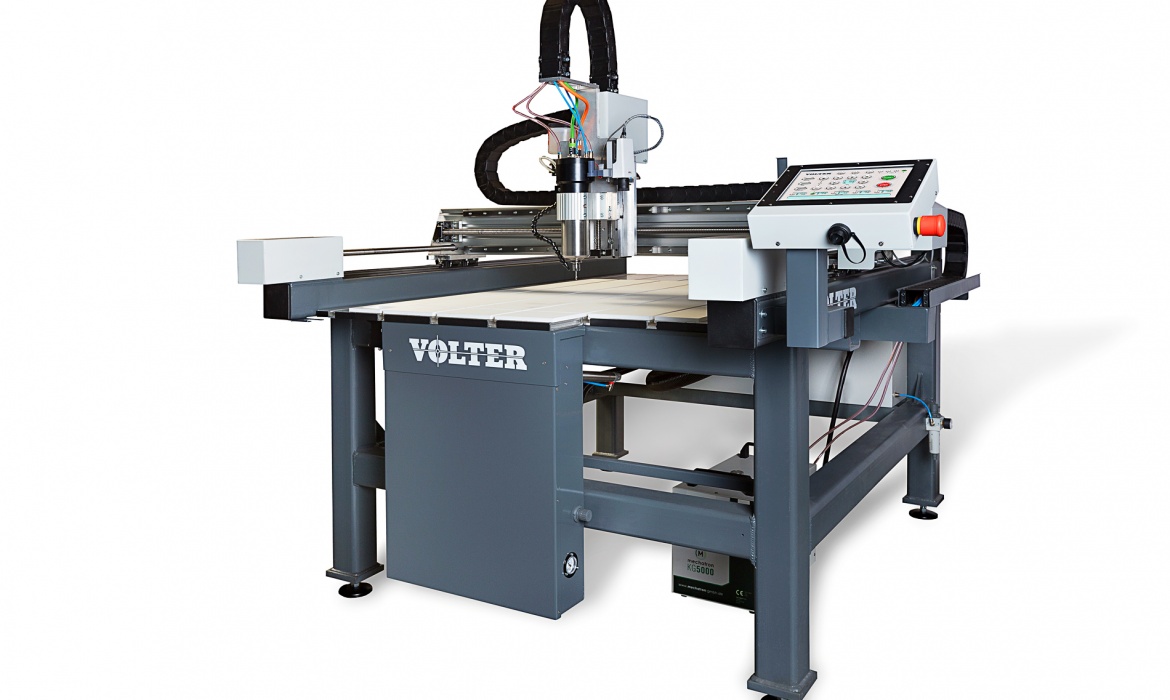

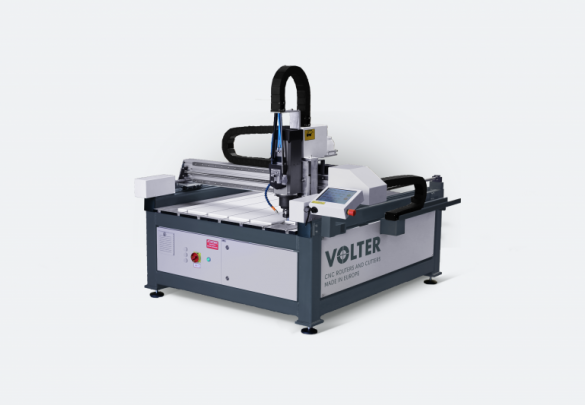

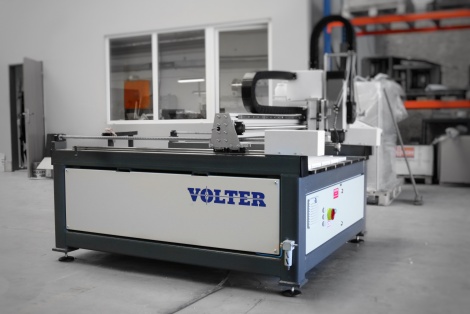

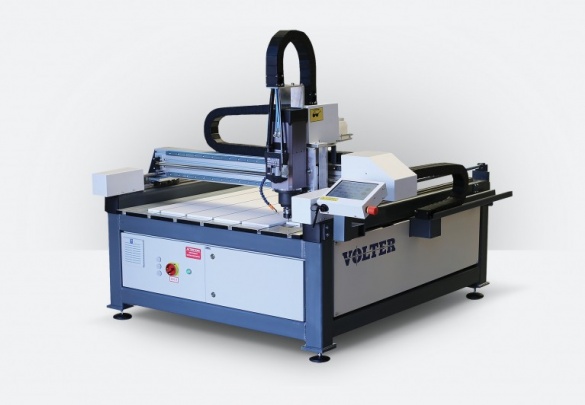

VOLTER S series CNC Routers have processing area 1,030 * 935 mm. This is the ideal solution for the production of small parts.

These machines allow to perform milling, cutting, drilling, 3D-processing of parts from non-ferrous metals, plastics, MDF, plywood, wood.

Due to the heavy welded steel frame and servo drives on all axes, these CNC Routers have the highest precision.





Specification
Model range
Basic configuration
Controller VOLTER CS
Max travel speed on X and Y axes, mm./sec. 150
Max travel speed on Z axis mm./sec. 100
Max thickness of material , mm. 100
Spindle power, kW 4.5 to 6.6
Spindle rotation speed, RPM from 1 000 to 24 000
Tool clamping Mechanical or pneumatic
Type of drives for X and Y axes Servo, ball screw
Type of drive for Z axis Servo, ball screw
Control panel 10" touch monitor
Model Processing area, mm Dimensions, mm Weight, kg
VOLTER S100 1030 * 935 mm 1 730 * 1 710 * 1 400 mm 500






Basic configuration:

  • Vacuum table
  • Tool length sensor
  • Brush foot
  • Laser pointer

Options:

  • Tool lubricator
  • Vacuum pump
  • Automatic tool changer
  • Dust collector 3kW with 2 bags
  • Dust collector MasterVac TS220
  • Vectric VCarve Pro software
1/
Basic configuration

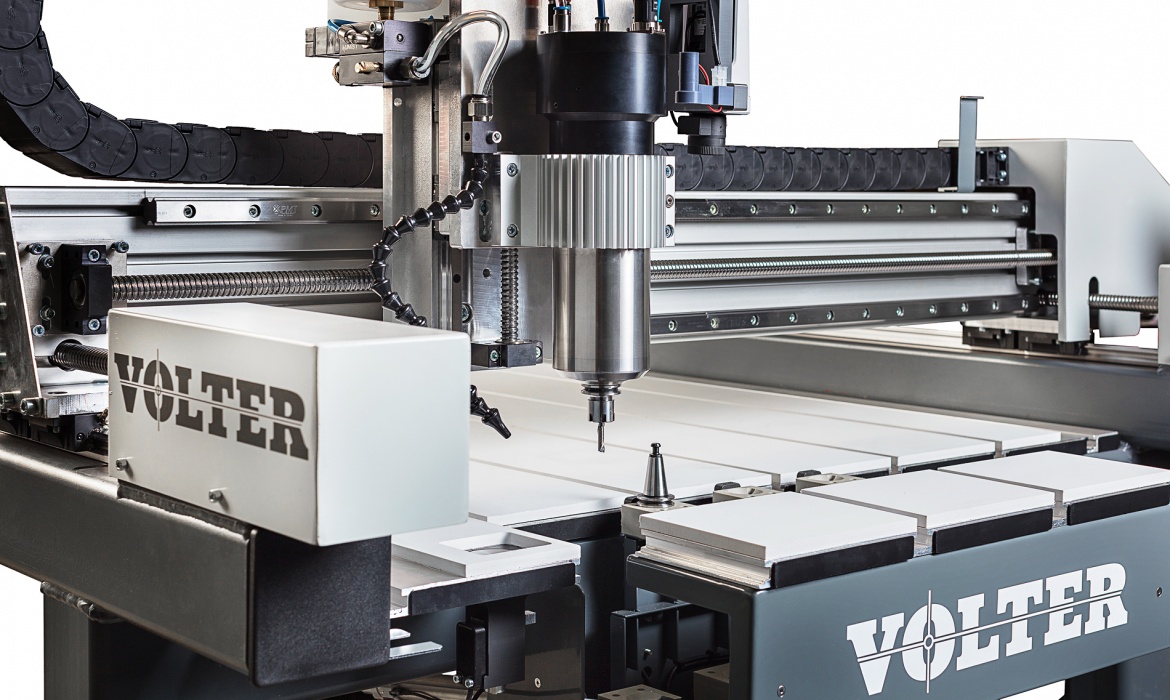

Steel welded base frame

Steel frames of VOLTER machines is welded from cold-rolled steel pipes. Each frame undergoes thermal stabilization to maintain its geometric dimensions for the full lifetime of the machine. The seats for the installation of linear guides and helical racks are processed by high-precision machining center.

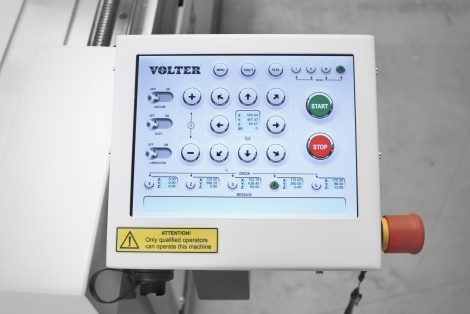

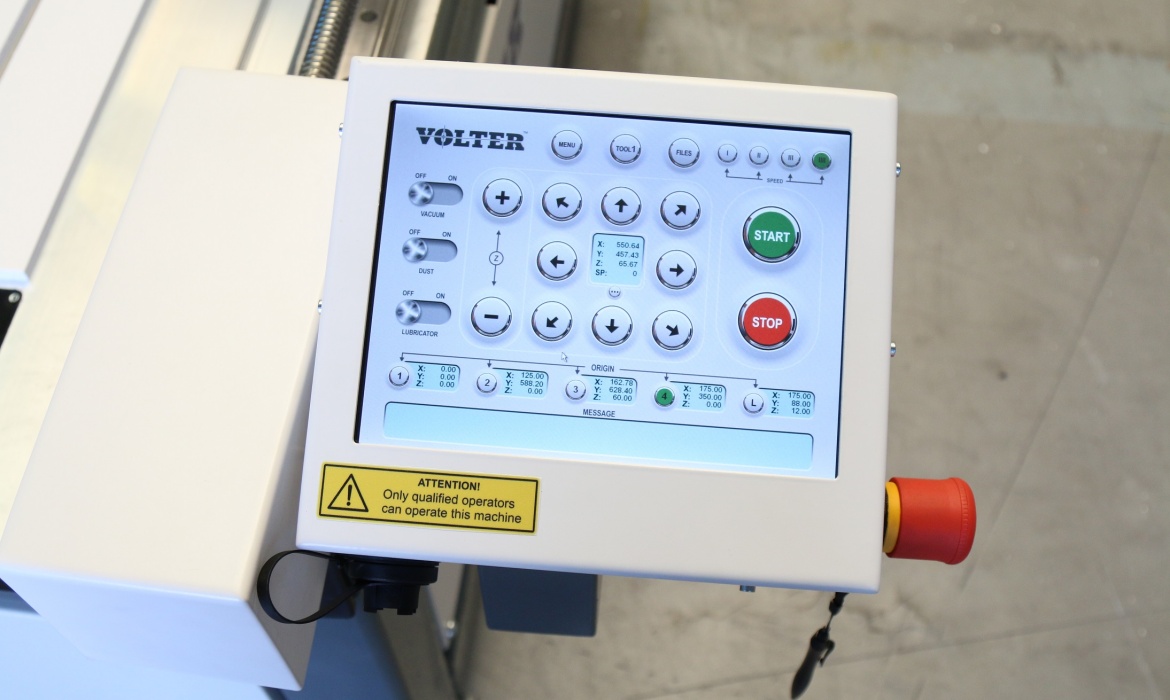

Monitor

Touch-screen monitor is the main control panel of VOLTER CNC Routers. This monitor allows to control processing and change settings. User friendly interface has a modern, convenient and intuitive design.

Spindles

VOLTER CNC Routers have air-cooled  spindles from HITECO (Italy) company with power from 4 to 10 kW. ER32 collets are used for all spindles. There is a choice between spindles with pneumatic or mechanical clamping. The maximum rotation speed is 24 000 RPM.

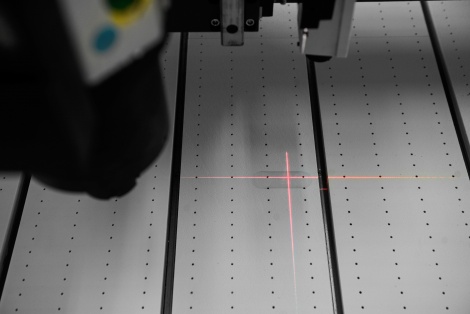

Laser pointer of the zero point

Laser pointer allows operator to set starting point of a job quickly and
easily. It is enough for it to move the laser pointer to angle of sheet and click "Save" button on the touch screen monitor.

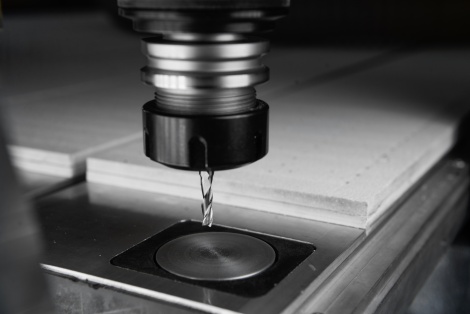

Tool length sensor

The sensor allows to measure the length of the bit quickly and accurately. It is enough to push a botton on touch screen monitor. Results of this measurement will be saved in the controller, which prevents damage of the working surface of the machine.

Vacuum hold down

Vacuum hold down is the most effitient solution for fixing the material on the machine during processing. The vacuum table consists of extruded aluminum profiles, a sacrificial PVC layer and a system of hvacuum valves for controlling the vacuum zones. Quantity of vacuum zones varies from 4 to 12 depending on the size of the working field of the machine.

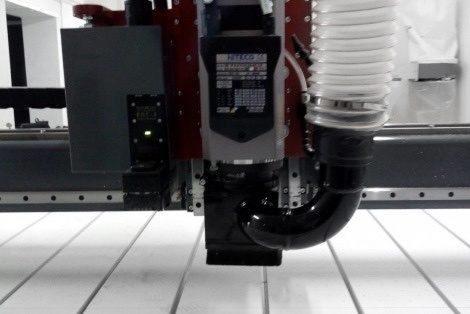

Brush foot

Designed to remove chips and waste from cutting zone. Chips fall into a special chamber mounted on the spindle and are removed through a special pipe into the dust collector.

Options

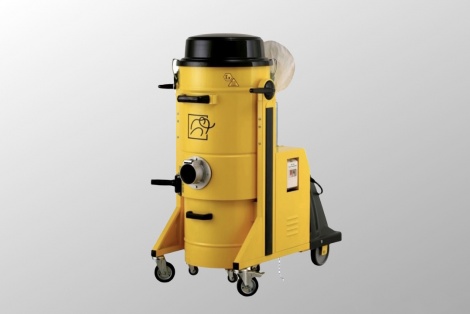

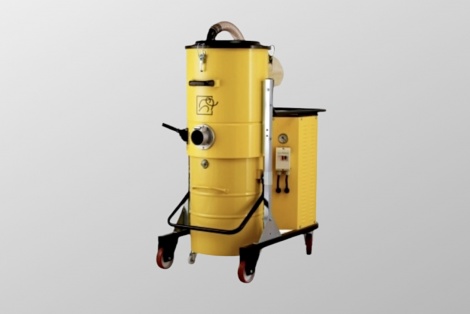

Dust collector MasterVac TS300

TS 300 is a reliable industrial dust collector for removing chips and dust during processing of various materials. The model is designed to work in the most hard operating conditions. Equipped with an industrial three-phase electric motor 400 V / 2200 W and a vacuum turbine with a side channel. The dust collector has a 100 l chip storage tank.

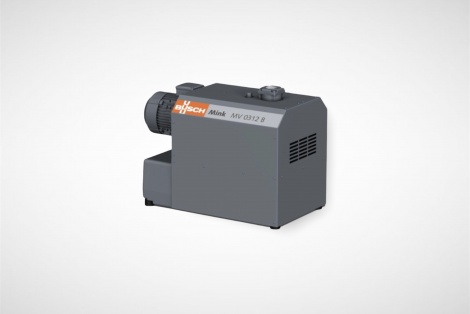

Vacuum pump BUSCH MINK 4 kW

Rotary vacuum pumps Busch MINK (Germany) are an effective and reliable solution for vacuum hold down of materials. The cam rotors do not come into contact with each other or with the cylinder in which they rotate. The extremely small clearances between the cam rotors and the casing optimize the internal seal and guarantee a consistently high pumping speed without using of lubricating fluids.

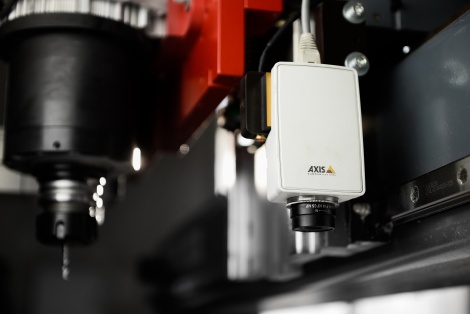

IP camera

The option allows to cut the printed image along the contour. When preparing a file for printing, marks are added to the file — black circles with a diameter of 5-8 mm placed behind the contour of the image to be cut.

Printed image is placed on the machine and after starting the job, the camera checks locations of marks. Special software of the machine make adjustments to the job file. It lets to cut printed image exactly on the contour regardless of geometric distortions encountered in print and location of printed image on the machine.

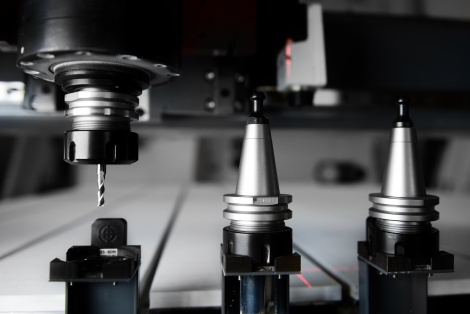

Automatic tool changer

This system automatically changes tools during processing. It lets to save time for jobs which need several tools for processing.

Controller saves length of each tool in the system. As result, it is not nesesarry to measure tool length after changing of a tool by this system.

VOLTER automatic tool changer has 7 positions for tools.

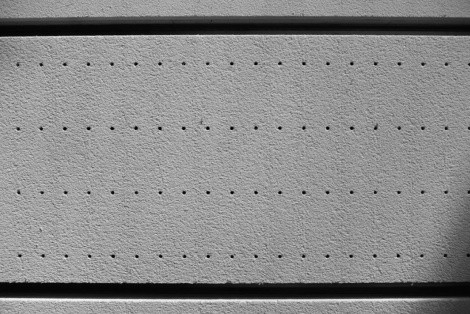

Phenolic vacuum table

The phenolic vacuum table provides a stronger vacuum pressure of the material on the surface. Almost perfectly flat working surface. Almost perfectly flat work surface. This solution allows quick replacement of the exposed layer on the working surface of the machine. It is an excellent choice for working with plastic, acrylic, composite and leather.

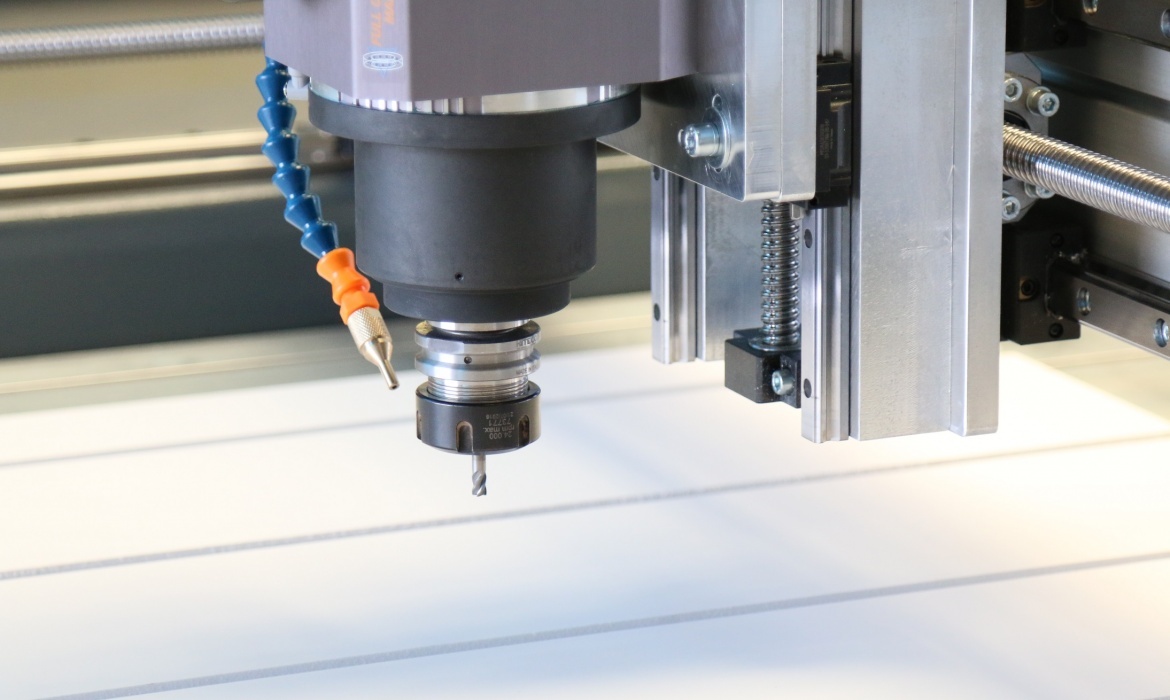

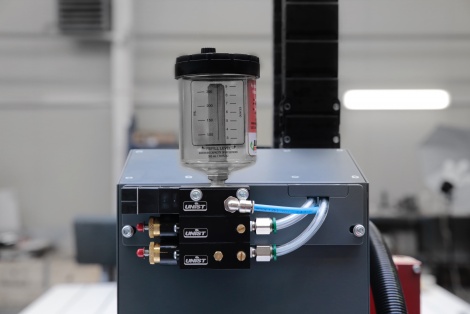

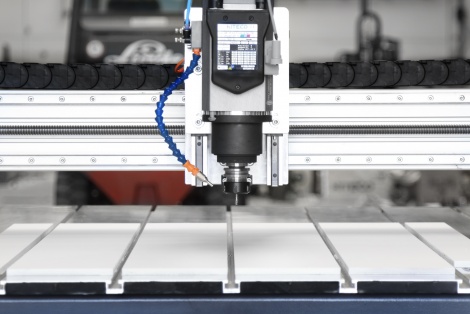

Tool lubricator

The system carries out a dosed supply to the cutting zone of lubricant emulsion or air flow. Continuous supply of lubricant (in the form of oil mist) or compressed air lets to maximize tool lifetime, improve  quality of processing and increase speed of processing.  It is necessary to connect an external pressed air supply with a working pressure of at least 6 bar to operate this lubrication system.

Dust collector MasterVac TS220

TS 220 is a reliable industrial dust collector for removing chips and dust during processing of various materials. The model is designed to work in the most hard operating conditions. Equipped with an industrial three-phase electric motor 400 V / 2200 W and a vacuum turbine with a side channel. The dust collector has a 30 l chip storage tank.

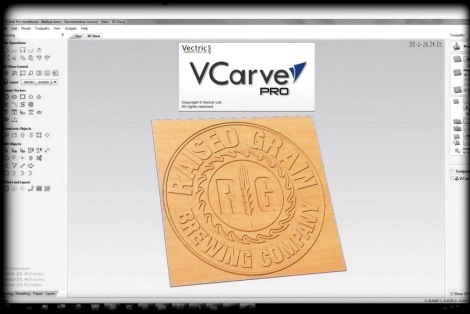

VECTRIC VCarve Pro software

VECTRIC VCarve Pro software to create and prepare 2D and 3D files for CNC Routers. Large selection of formats for importing files, intuitive interface.

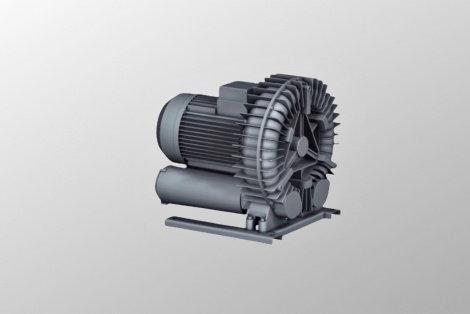

Vacuum pump BUSCH SAMOS 7,5 kW

High efficient 7.5 kW vortex blower is supplied complete with air filter, pressure gauge, safety valve and fittings for connecting to the machine. Do not require maintenance during the entire life cycle.
