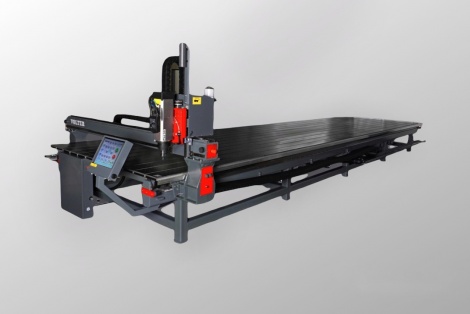

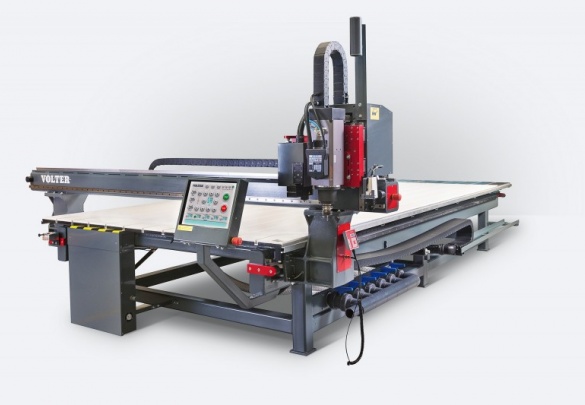

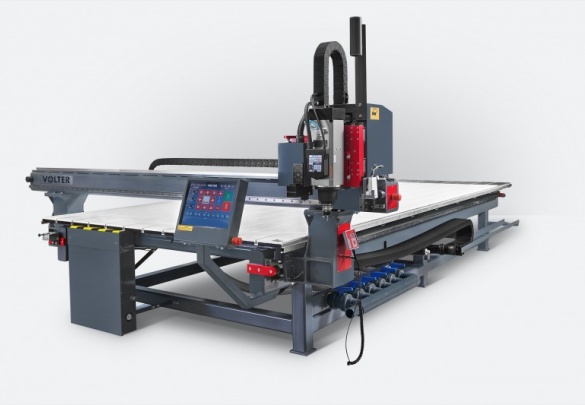

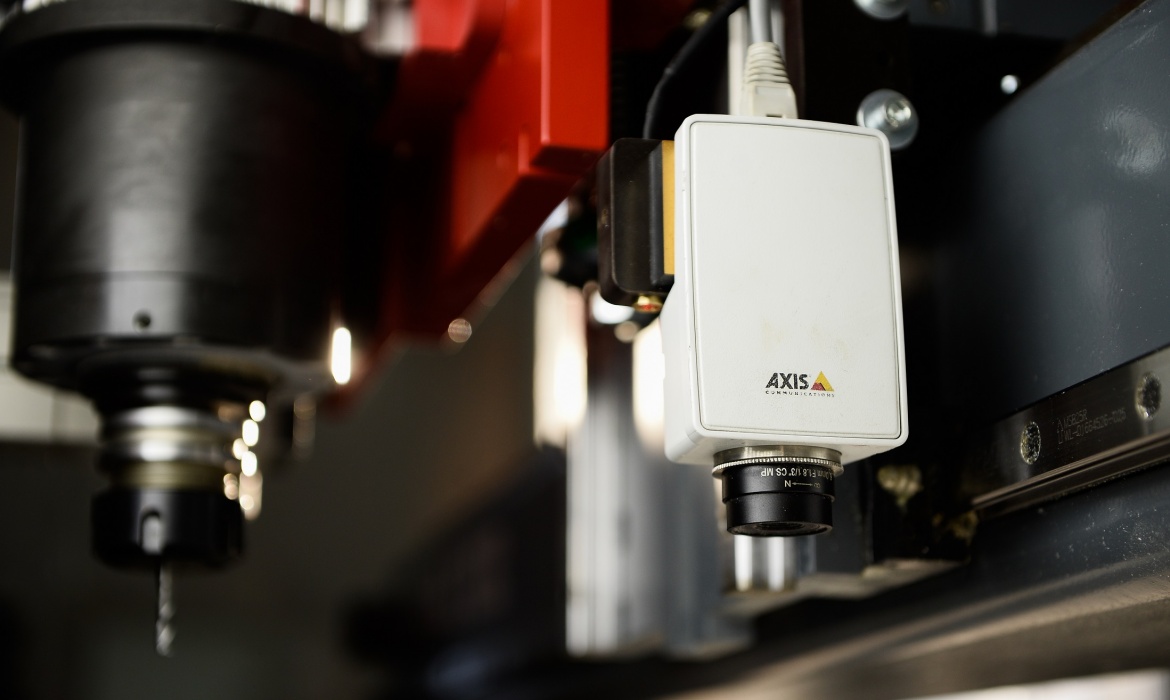

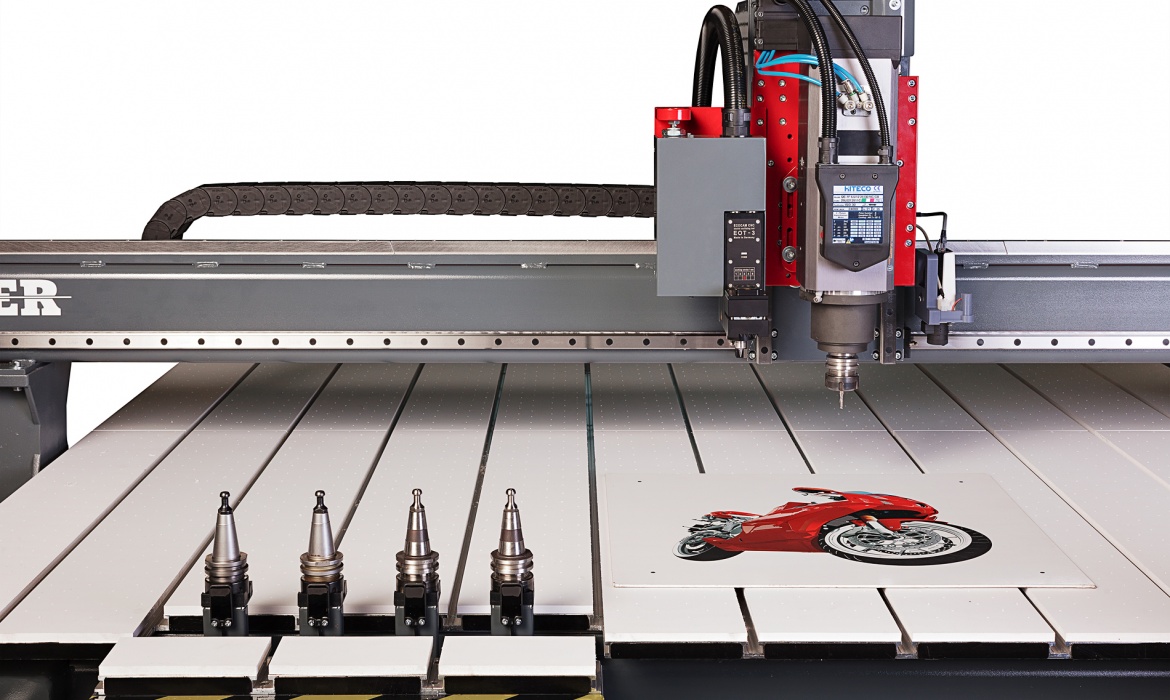

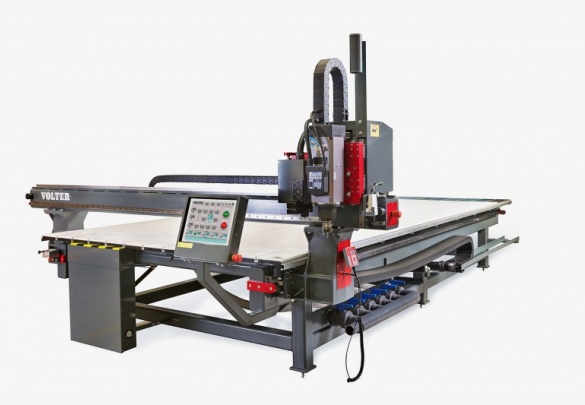

VOLTER PL series machines are designed for processing of various types of sheet plastics.

Design of vacuum table, 15" touch screen monitor, a wide range of options are the great solution for processing all types of plastics.

Volter CNC Routers PL series have processing area from 1,610*1,610mm to 8,200*2,150mm.

Specification
Model range
Basic configuration
Controller VOLTER CS
Max travel speed on X and Y axes, mm./sec. 500
Max travel speed on Z axis mm./sec. 100
Max thickness of material , mm. 160
Spindle power, kW from 4.5 to 10
Spindle rotation speed, RPM from 1 000 to 24 000
Tool clamping Mechanical or pneumatic
Type of drives for X and Y axes Servo, planetary gear heads, helical racks
Type of drive for Z axis Servo, ball screw
Control panel 15" touch monitor



Model Processing area Dimensions Weight, kg
VOLTER PL1616 3 200 * 2 150 mm 3 800 * 2 600 * 1 600 mm 1 800
VOLTER PL2016 2 200 * 1 610 mm 3 300 * 2 100 * 1 600 mm 1 200
VOLTER PL3016 3 200 * 1 610 mm 4 300 * 2 100 * 1 600 mm 1 500
VOLTER PL3020 3 200 * 2 150 mm 4 300 * 2 600 * 1 600 mm 1 800
VOLTER PL4016 4 200 * 1 610 mm 5 300 * 2 100 * 1 600 mm 1 600
VOLTER PL4020 4 200 * 2 150 mm 5 300 * 2 600 * 1 600 mm 2 200
VOLTER PL4016 6 200 * 1 610 mm 7 300 * 2 100 * 1 600 mm 2 600
VOLTER PL6020 6 200 * 2 150 mm 7 300 * 2 600 * 1 600 mm 3 100



Basic configuration:

  • Vacuum table
  • Tool length sensor
  • Brush foot
  • Laser pointer

Options:

  • Tool lubricator
  • Vacuum pump
  • Automatic tool changer
  • Dust collector 3kW with 2 bags
  • Dust collector MasterVac TS220
  • Tangential knife
  • Drag knife
  • Vectric VCarve Pro software
1/
Basic configuration

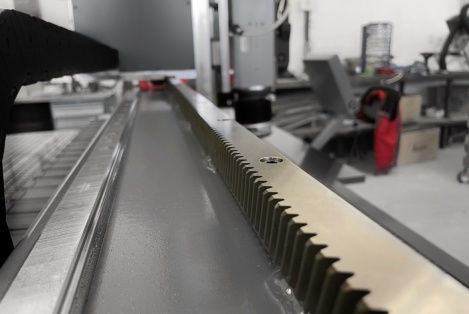

Helical racks

Helical racks set in X and Y axes. It increases the accuracy and quality of processing, reduce noise and vibrations during moving.

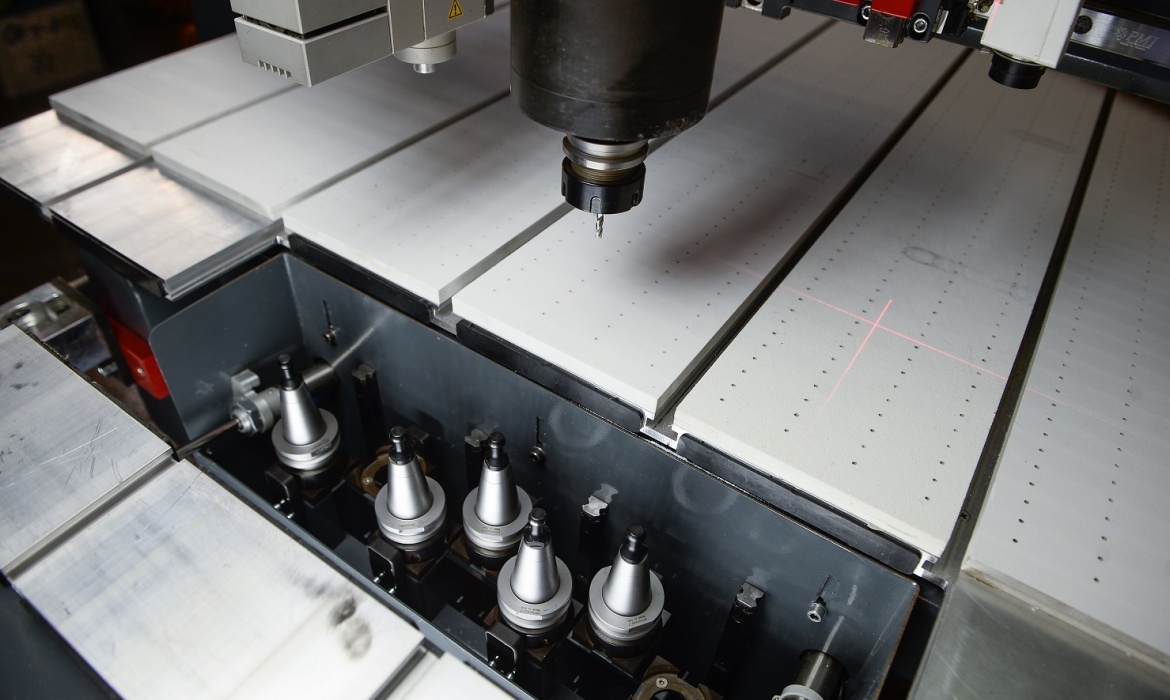

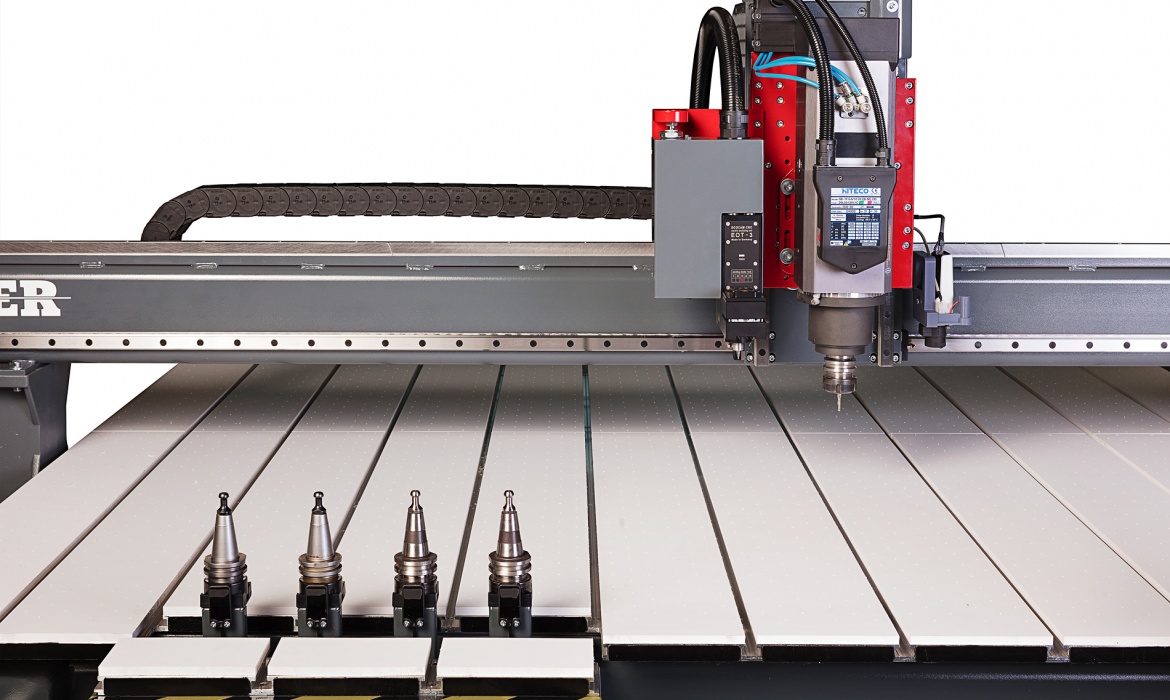

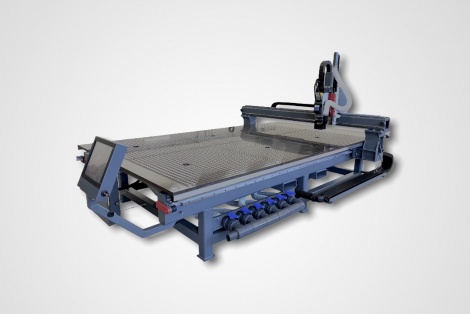

Vacuum table

Vacuum hold down is the most effitient solution for fixing the material on the machine during processing. The vacuum table consists of extruded aluminum profiles, a sacrificial PVC layer and a system of hvacuum valves for controlling the vacuum zones. Quantity of vacuum zones varies from 4 to 12 depending on the size of the working field of the machine.

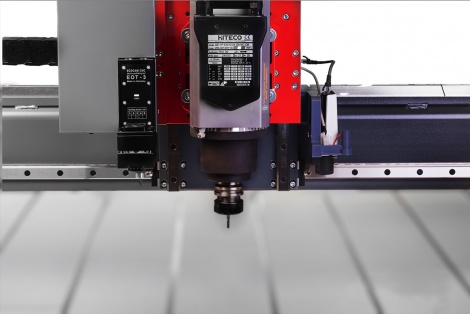

Spindles

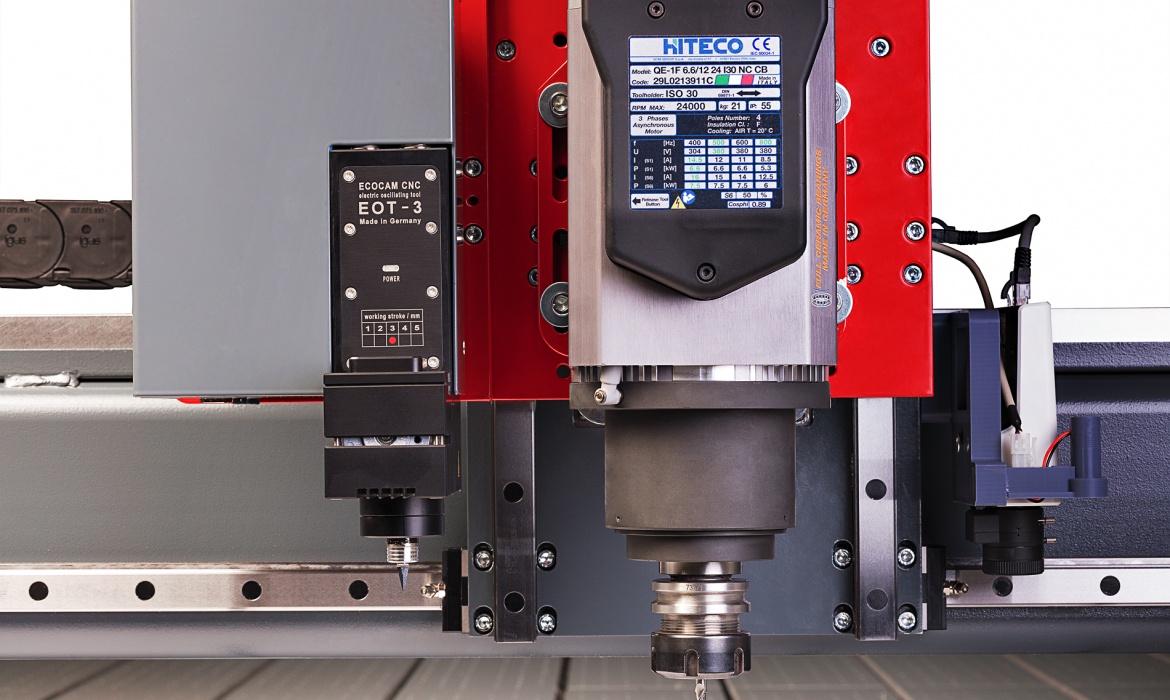

VOLTER CNC Routers have air-cooled  spindles from HITECO (Italy) company with power from 4 to 10 kW. ER32 collets are used for all spindles. There is a choice between spindles with pneumatic or mechanical clamping. The maximum rotation speed is 24 000 RPM.

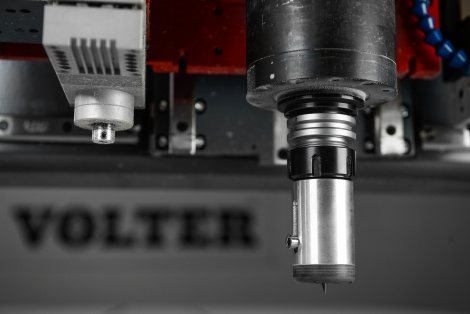

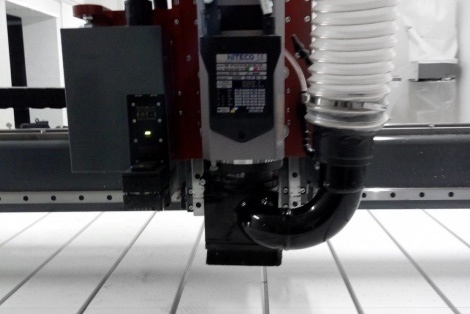

Brush foot

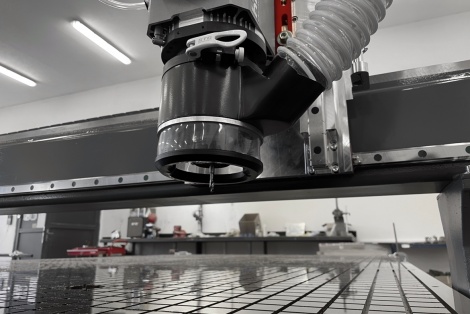

This device press on the material around cutting tool to to provide high-quality processing of uneven and flexible materials. It is recommended for the processing of warped or curved sheets of a rigid material (for example, aluminum) and for the processing of thin and soft materials.  This device can be also used to remove chips and dust during cutting.

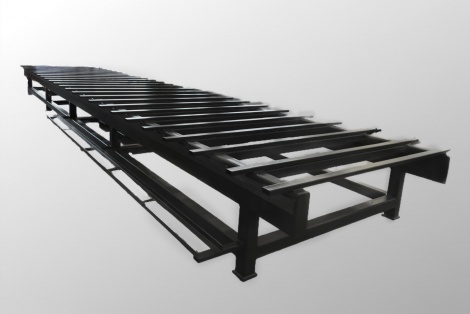

Steel welded base frame

Steel frames of VOLTER machines is welded from cold-rolled steel pipes. Each frame undergoes thermal stabilization to maintain its geometric dimensions for the full lifetime of the machine. The seats for the installation of linear guides and helical racks are processed by high-precision machining center.

Monitor

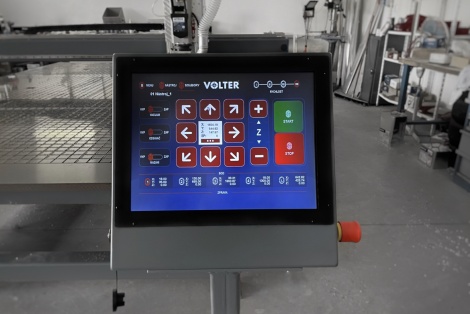

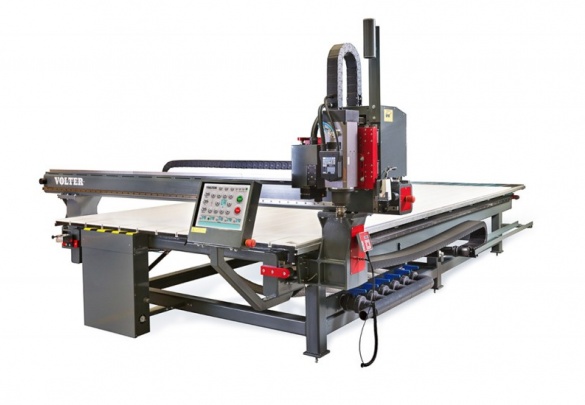

Touch-screen monitor is the main control panel of VOLTER CNC Routers. This monitor allows to control processing and change settings. User friendly interface has a modern, convenient and intuitive design.

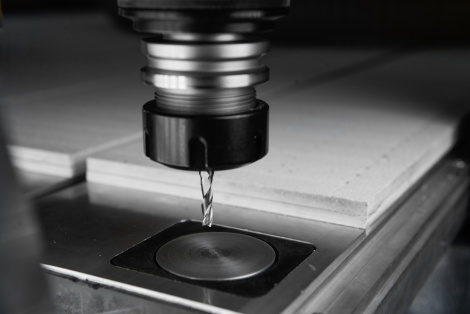

Tool length sensor

The sensor allows to measure the length of the bit quickly and accurately. It is enough to push a botton on touch screen monitor. Results of this measurement will be saved in the controller, which prevents damage of the working surface of the machine.

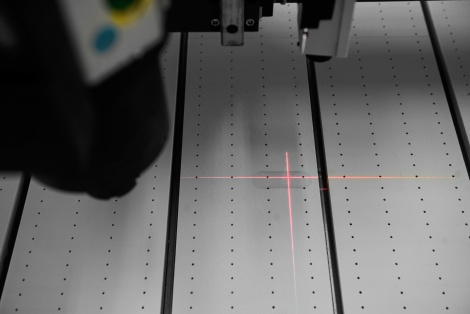

Laser pointer of the zero point

Laser pointer allows operator to set starting point of a job quickly and
easily. It is enough for it to move the laser pointer to angle of sheet and click "Save" button on the touch screen monitor.

Specification

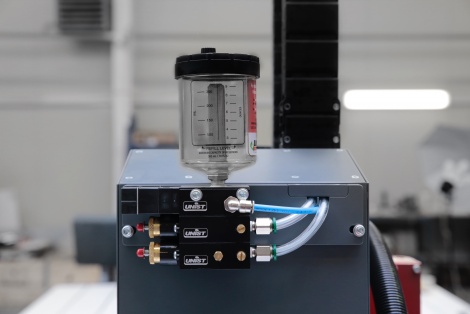

Tool lubricator

The system carries out a dosed supply to the cutting zone of lubricant emulsion or air flow. Continuous supply of lubricant (in the form of oil mist) or compressed air lets to maximize tool lifetime, improve  quality of processing and increase speed of processing.  It is necessary to connect an external pressed air supply with a working pressure of at least 6 bar to operate this lubrication system.

Pressure foot

This device press on the material around cutting tool to to provide high-quality processing of uneven and flexible materials. It is recommended for the processing of warped or curved sheets of a rigid material (for example, aluminum) and for the processing of thin and soft materials.  This device can be also used to remove chips and dust during cutting.

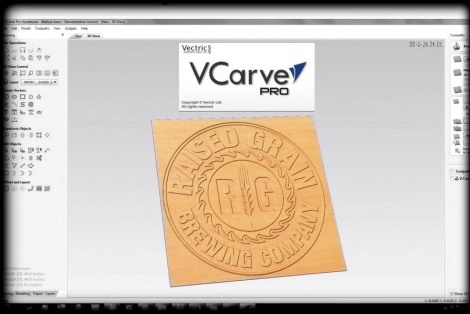

VECTRIC VCarve Pro software

VECTRIC VCarve Pro software to create and prepare 2D and 3D files for CNC Routers. Large selection of formats for importing files, intuitive interface.

Tažný nůž

This knife is efficient and reliable solution for cutting polymer materials and corrugated board. The main application is cutting along the contour of figures from corrugated cardboard, sheet vinyl, and other polymer sheets. The principle of operation of this knife is that the cutter has free rotation. Tip of the blade due has displacement relative to the axis of rotation. As result, the knife is turned by the cutting edge in the direction of tool movement due to the material resistance.

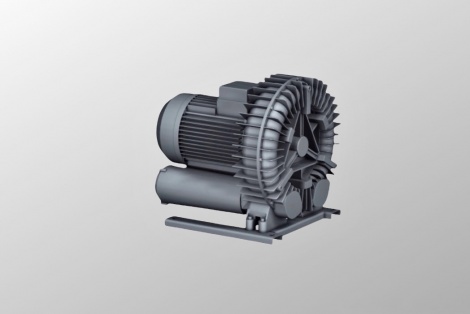

Vacuum pump BUSCH SAMOS 7,5 kW

High efficient 7.5 kW vortex blower is supplied complete with air filter, pressure gauge, safety valve and fittings for connecting to the machine. Do not require maintenance during the entire life cycle.

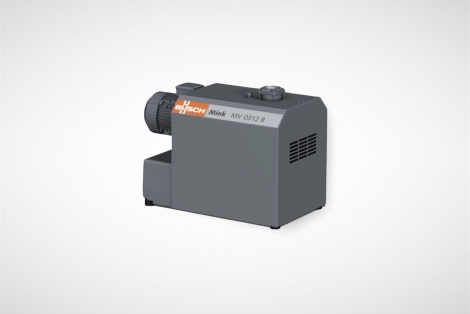

Vacuum pump BUSCH MINK 4 kW

Rotary vacuum pumps Busch MINK (Germany) are an effective and reliable solution for vacuum hold down of materials. The cam rotors do not come into contact with each other or with the cylinder in which they rotate. The extremely small clearances between the cam rotors and the casing optimize the internal seal and guarantee a consistently high pumping speed without using of lubricating fluids.

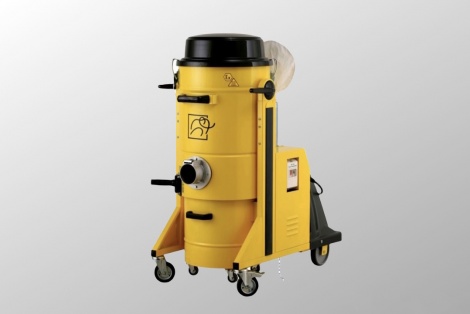

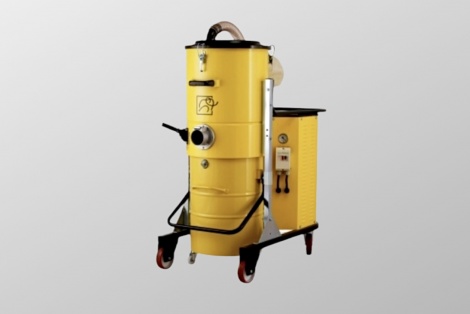

Dust collector MasterVac TS220

TS 220 is a reliable industrial dust collector for removing chips and dust during processing of various materials. The model is designed to work in the most hard operating conditions. Equipped with an industrial three-phase electric motor 400 V / 2200 W and a vacuum turbine with a side channel. The dust collector has a 30 l chip storage tank.

Dust collector MasterVac TS300

TS 300 is a reliable industrial dust collector for removing chips and dust during processing of various materials. The model is designed to work in the most hard operating conditions. Equipped with an industrial three-phase electric motor 400 V / 2200 W and a vacuum turbine with a side channel. The dust collector has a 100 l chip storage tank.

Phenolic vacuum table

The phenolic vacuum table provides a stronger vacuum pressure of the material on the surface. Almost perfectly flat working surface. Almost perfectly flat work surface. This solution allows quick replacement of the exposed layer on the working surface of the machine. It is an excellent choice for working with plastic, acrylic, composite and leather.
